Rocware RC28 UHD Video PTZ Camera
RC28
See more

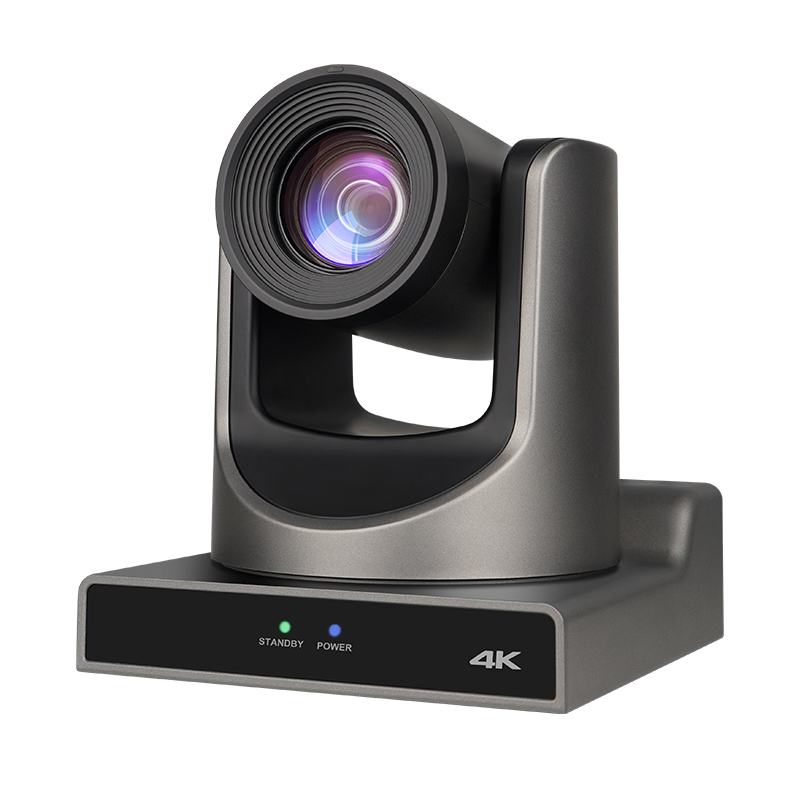

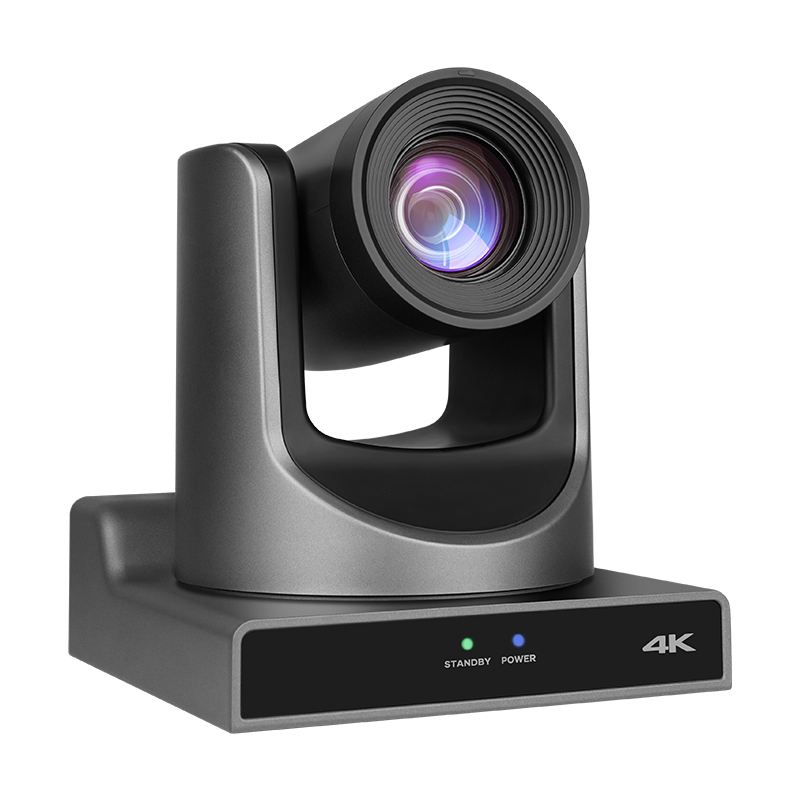

Rocware RC28 UHD Video PTZ Camera

Rocware RC28 UHD Video PTZ Camera has Sony's 1/1.8'' inch CMOS sensor with 4K quality at an impressive 60 fps. This broadcasting-level video camera supports NDI|HX2 (optional)to manage very low latency. 20X optical zoom and AI humanoid Tracking modes to keep the object always still in clear focus. Built with rich and complete interfaces, You can output to HDMI (UHD), 3G-SDI (HD) with IP and USB 3.0 interfaces simultaneously.
4K60FPS
2D and 3D noise reduction algorithms
AI Tracking
HDMI 2.0
255 Preset
20x optical zoom
4K Ultra-high resolution
Using Sony's 1/1.8'' inch UHD CMOS sensor with a maximum of 8.42 megapixels, high quality images in 4K (3840x2160) can be achieved. And downward compatible with 1080P, 720P and other resolutions.
4K Ultra-high resolution
Support NDI HX2
Support NDI HX2
The camera can connect directly to a NDI network, utilizing NDI-based video production workflows without additional configuration, reducing cost and set-up time.
Specifications
Camera
  • Signal System :
  • HDMI: 4K/60, 4K/50, 4K/30, 4K/25, 4K/59.94, 4K/29.97, 1080P/60, 1080P/50, 1080P/59.94, 1080P/30, 1080P/29.97, 1080I/60, 1080I/50, 1080I/59.94, 720P/60, 720P/59.94
  • 3G-SDI: 1080P/60, 1080P/50, 1080P/30, 1080P/29.97,1080P/59.94, 1080P/25, 1080I/60, 1080I/50, 1080I/59.94, 720P/60, 720P/59.94
  • Sensor : 1/1.8 inch, CMOS, Max Effective Pixel
  • Scanning Mode : Progressive
  • Lens: 20x, f = 6.25mm ~ 125mm, F1.58 ~ F3.95
  • Digital Zoom :16x
  • Minimum Illumination :0.5 Lux @(F1.8, AGC ON)
  • Shutter :1/30s ~ 1/10000s
  • White Balance : Auto, Indoor, Outdoor, One Push, Manual, VAR
Network Features
  • Video Compression:H.265/H.264/MJEPG
  • Video Stream:Main Stream, Sub Stream
  • Main Stream Resolution:3840x2160,1920x1080, 1280x720, 1024x576
  • Sub Stream Resolution:1920x1080,720x576, 720x480, 320x240
  • Video Bit Rate :32Kbps ~ 20480Kbps
  • Bit Rate Type:Variable Rate, Fixed Rate
  • Frame Rate:50Hz
  • Audio Compression : AAC
  • Audio Bit Rate : 96Kbps, 128Kbps, 256Kbps
  • Support protocols:TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.
USB Features
  • Operate System: Windows 7/8/10, Mac OS X, Linux, Android
  • Color System / Compression :YUY2 / MJPEG / H.264 / H.265
  • Video Format: YUY2 max to 1080P@30fps H.264 AVC/SVC max to 4K@60fps MJPEG max to 4K@30fps
  • USB Audio: Support
  • USB Video Protocol :UVC 1.1 ~ 1.5
  • UVC PTZ: Support

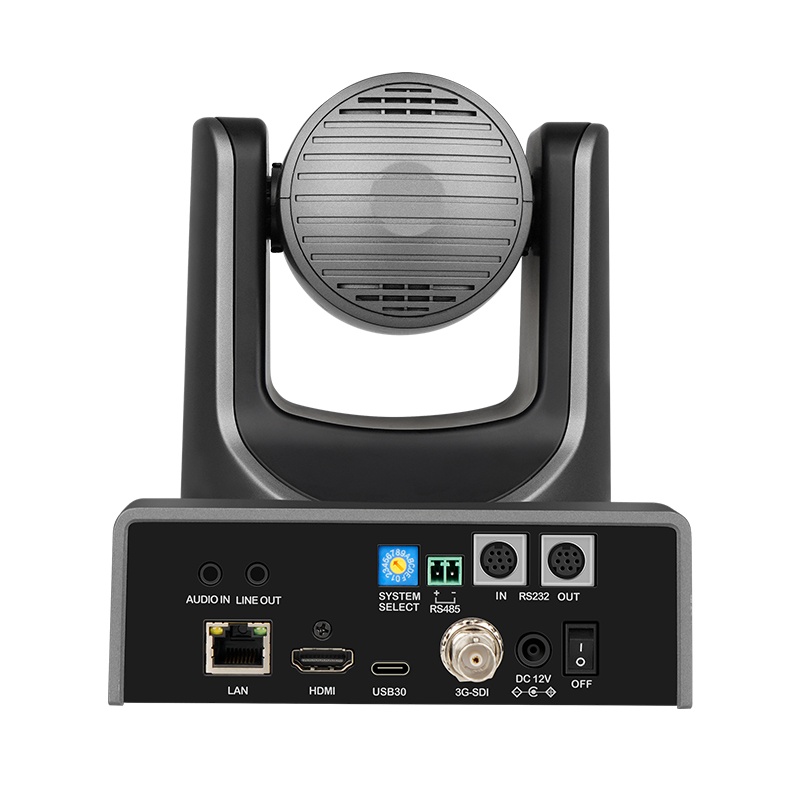

Input/Output Interface
  • HD Output:1xHDMI Version 2.0;1x3G-SDI
  • Network Interface:1xRJ45
  • Audio Interface:2-ch 3.5mm Audio Interface, Line In,Line out
  • USB :1xUSB3.0 Type C female jack
  • Communication Interface:1xRS232 In
  • Power Jack:JEITA type (DC IN 12V)
Generic Specification
  • Input Voltage:DC 12V / PoE (802.3af)
  • Current Consumption:1.0A (Max)
  • Operating Temperature:-10°C ~ 40°C (14°F ~ 104°F)
  • Storage Temperature:-40°C ~ 60°C (-40°F ~ 140°F)
  • Power Consumption:12W (Max)
  • Size:146 x 146 x 164mm
  • Net Weight:1.7Kg (3.0lb)
Package Contents
