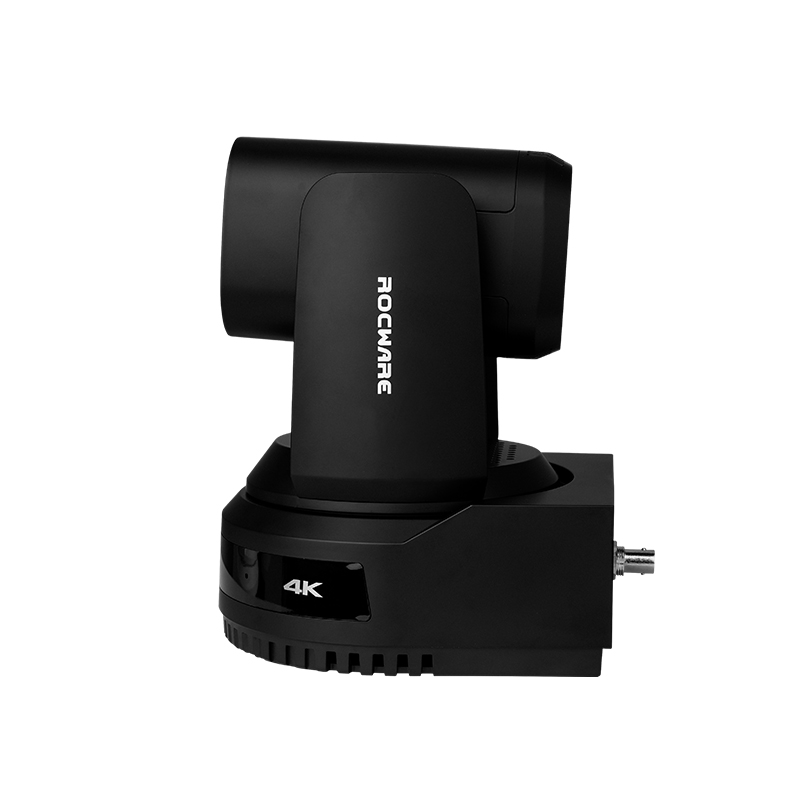

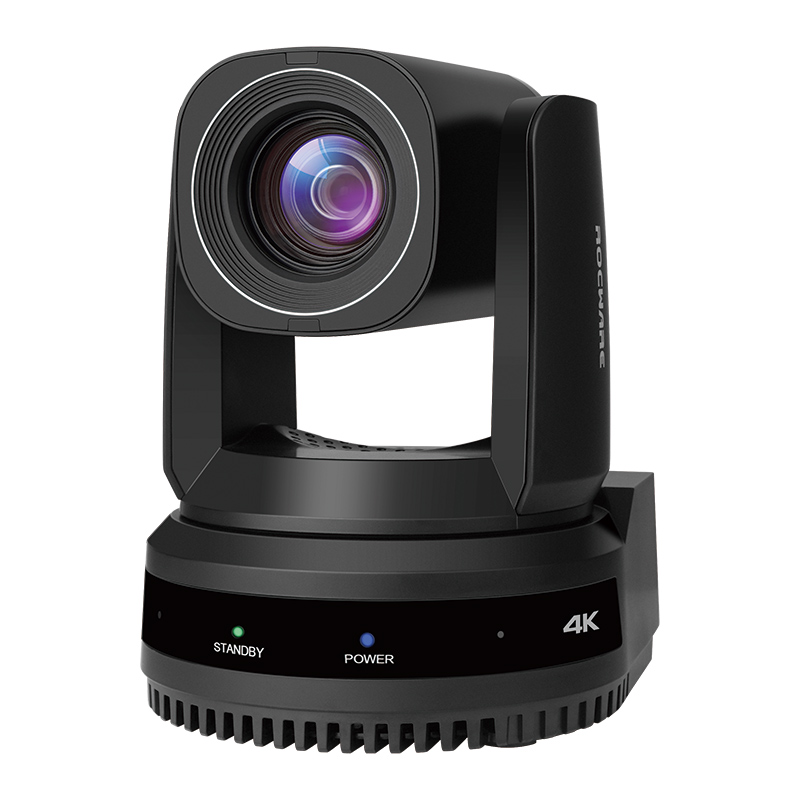

Rocware RC840S UHD Video PTZ Camera

Rocware RC840S UHD Video PTZ Camera has Sony's 1/1.8'' inch CMOS sensor with 4K quality at an impressive 60 fps. This broadcasting-level video camera supports NDI|HX2 (optional)to manage very low latency. 20X optical zoom and AI humanoid Tracking modes to keep the object always still in clear focus. Built with rich and complete interfaces, You can output to HDMI (UHD) or 3G-SDI (HD) with IP and USB 2.0 interfaces simultaneously.
4k 60FPS
NDI HX2
20x Optical Zoom
Smart Exposure
AI humanoid tracking
HDMI 2.0
4K Ultra-high resolution
Using Sony's 1/1.8'' inch UHD CMOS sensor with a maximum of 8.42 megapixels, high quality images in 4K (3840x2160) can be achieved. And downward compatible with 1080P, 720P and other resolutions.
4K Ultra-high resolution
Supports NDI |HX3
Supports NDI |HX3
The camera can connect directly to a NDI network, utilizing NDI-based video production workflows without additional configuration, reducing cost and set-up time.
Specifications
Camera
  • Video System : HDMI 4K@60fps(Max), 3G-SDI 1080p/60(Max)
  • Sensor : 1 / 1.8-inch high-quality UHD CMOS sensor with a maximum of 8.42 million pixels
  • Scanning Mode : Progressive scanning
  • Lens : 20x, f = 6.25mm ~ 125mm, F1.58 ~ F3.95
  • Digital Zoom : 16x
  • Minimal Illumination : 0.5Lux @ (F1.8, AGC ON)
  • Shutter : 1/30s ~ 1/10000s
  • White Balance : Automatic, indoor, outdoor, one touch, manual,VAR
  • Backlight Compensation : Supported
  • Digital Noise Reduction : 3D digital noise reduction
  • Video S/N : ≥55dB
  • Horizontal Angle of View : 60° ~ 3.5°
  • Vertical Angle of View : 35.7° ~ 2.0°
  • Horizontal Rotation Range : ±170°
  • Vertical Rotation Range : -30° ~ +90°
  • Pan Speed Range : 1.7° ~ 100°/s
  • Tilt Speed Range : 1.7° ~ 69.9
  • H & V Flip : Supported
  • Image Freeze : Supported
  • PoE : Supported
  • Number of Preset : Supported
  • Preset Accuracy :0.1°
USB Featured
  • Operate System : Windows 7, Windows 8, Windows 10, Windows 11, Mac OS X, Linux, Android
  • Color System : YUY2 / H.264 / MJPEG /H.265
  • Video Format : YUY2
  • Audio on USB : Supported
  • USB Video Communication Protocol : UVC 1.1~1.5
  • UVC PTZ : Supported
Network Features
  • Video Compression : H.265/H.264/MJPEG
  • Video Stream : First streaming, second streaming
  • Main Stream Resolution : 3840x2160, 1920x1080, 1280x720, 1024x576
  • Sub Stream Resolution : 720x480, 320x240
  • Video Bit Rate : 32kbps~51200kbps (Second Way
  • Bit Rate Type : Variable bit rate,Fixed bit rate
  • Frame Rate : 50Hz
  • Audio Compression : AAC
  • Audio Bit Rate : 96Kbps,128Kbps
  • Support protocols : NDI®|HX2, SRT, TCP/IP,HTTP,RTSP, RTMP(s),Onvif,DHCP,Multicast and so on

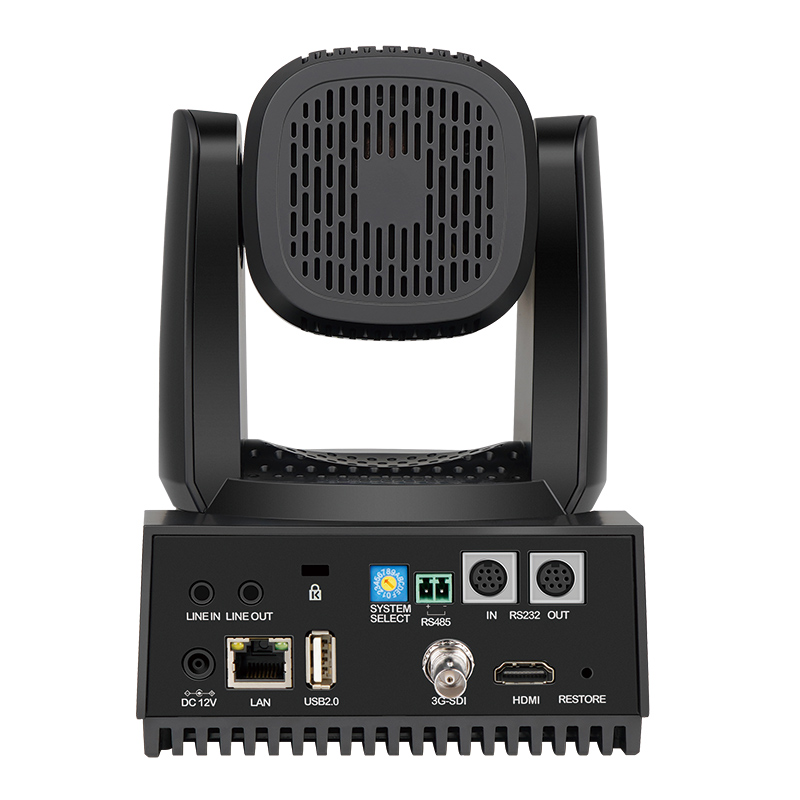

Input/Output Interface
  • HD Output : 1xHDMI
  • Network Interface : 1xRJ45
  • Audio Interface : 1-ch , 3.5mm Audio Interface, Line In;1-ch , 3.5mm Audio Interface, Line Out;
  • USB : 1-ch, USB2.0, Type-A(Can be configured as Host or Device by software)
  • Communication Interface : 1xRS232 In
  • RESTORE : Support
  • Power Jack : JEITA type (DC IN 12V)
Generic Specification
  • Installation Direction : Mounting, Ceiling Mounting
  • Tally Lamp : 1PCS (Red and Green)
  • Power Indicator : 1PCS(Blue)
  • Status Indicator : 1PCS (Green)
  • IR Remote Control : Support
  • Dial : Support
  • Input Voltage : DC 12V /POE+
  • Input Cur : 2A(MAX)
  • Operating Temperature : 0°C ~ 40°C
  • Storage Temperature : -40°C ~ 60°C
  • Power Consumption : MAX 18W
  • Size : 169mm x 142mm x 175mm
  • Net Weight : About 1.5Kg
