4K UHD PTZ Video Conference Camera-RC90

Equipped with NDI|HX 2 function, RC90 provides a flexible and wide range of applications through a single IP cable, and transmits various video and audio signals with low latency to simplify the workflow. AI tracking is enable to subtly capture speakers based on their movements. With 20x optical zoom and 4K resolution, combined with AI tracking and smooth PTZ functions, it is used for live events, auditorium lectures, sports and gaming competitions, online and distance learning courses, multinational conferences, personnel training courses, live streaming and other application scenarios. Enjoy efficient and simple setup and create comprehensive NDI-based compositions.
4K ultra HD resolution
NDI | HX2
HDMI 2.0
AI tracking
20x optical zoom
2D and 3D noise reduction
Powerful CMOS sensor outputs high quality images
RC90 uses a new generation of Sony 1 / 1.8 inches, up to 8.42 megapixel high-quality UHD CMOS sensors to achieve 4K (3840x2160) ultra-high resolution images. It delivers 4K of brilliant colors and detailed video at 60fps, even in environments that are too dark or too bright.
Powerful CMOS sensor outputs high quality images
NDI protocol for low-latency transmission of audio and video
NDI protocol for low-latency transmission of audio and video
Compliant with NDI standards, RC90 provides controlling, switching and streaming for live cameras with low latency over an IP connection. It makes live streaming faster and simpler, allowing users to stream for larger audiences without complicated and expensive equipment.
NDI can encode, transmit, and receive many high-quality, low-latency, frame-accurate video and audio streams in real time. This facilitates any networked video equipment, including video mixers, graphics systems, capture cards, and many other production devices.This makes the number of resources available for on-site production switching becomes possible without direct connection to the device, changing location, or investment expensive high bandwidth network to simply replace SDI-based workflow.
Specifications
Camera
  • Video System:4K@60fps,[email protected], 4K@50fps,4K@30fps, 4K@25fps, [email protected], 1080P@60fps, 1080P@50fps, 1080I@60fps, 1080I@50fp, 1080P@30fps, [email protected]@59.94fps, [email protected], [email protected], 720P@60fps,[email protected]@50fps
  • Sensor:1 / 1.8-inch high-quality UHD CMOS sensor with a maximum of 8.42 million pixels
  • Scanning Mode:Progressive scanning
  • Lens :20x, f = 6.25mm ~ 125mm, F1.58 ~ F3.95
  • Digital Zoom:16x
  • Minimal Illumination:0.5Lux @ (F1.8, AGC ON)
  • Shutter:1/30s ~ 1/10000s
  • White Balance:Automatic, indoor, outdoor, one touch, manual
  • Backlight Compensation :Supported
  • Digital Noise Reduction :3D digital noise reduction
  • Video S/N:≥55dB
  • Horizontal Angle of View :60° ~ 3.5°
  • Horizontal Angle of View :35.7° ~ 2.0°
  • Horizontal Rotation Range :±162.5°
  • Vertical Rotation Range : -30° ~ +90°
  • Pan Speed Range :1.8°~80°/S
  • Tilt Speed Range :1.5°~49°/S
  • H & V Flip:Supported
  • Image Freeze:Supported
  • PoE: Supported
  • Number of Preset: 255
  • Preset Accuracy :0.1°
Network Features
  • Video Compression:H.265/H.264/MJPEG
  • Video Stream: First streaming, second streaming
  • Main Stream Resolution :3840x2160, 1920x1080, 1280x720, 1024x576等
  • Sub Stream Resolution:720x576, 720x480, 320x240等
  • Video Bit Rate:32kbps~102400kbps
  • Bit Rate Type:Variable bit rate,Fixed bit rate
  • Frame Rate:50Hz
  • Audio Compression:AAC、G711A
  • Audio Bit Rate :96Kbps,128Kbps
  • Support protocols: NDI®|HX2, SRT, TCP/IP,HTTP,RTSP,RTMP(s),Onvif,DHCP,Multicast and so on
USB Featured
  • USB3.0 : Operate System
  • Color System / Compression: YUY2 / H.264 / MJPEG /H.265
  • Video Format: YUY2
  • Audio on USB: Supported
  • USB Video Communication Protocol:UVC 1.1~1.5
  • UVC PTZ :Supported
  • USB2.0 : Operate System
  • Color System / Compression:YUY2 / H.264 / MJPEG /H.265
  • Video Format:YUY2
  • Audio on USB:Supported
  • USB Video Communication Protocol:UVC 1.1~1.5
  • UVC PTZ :Supported

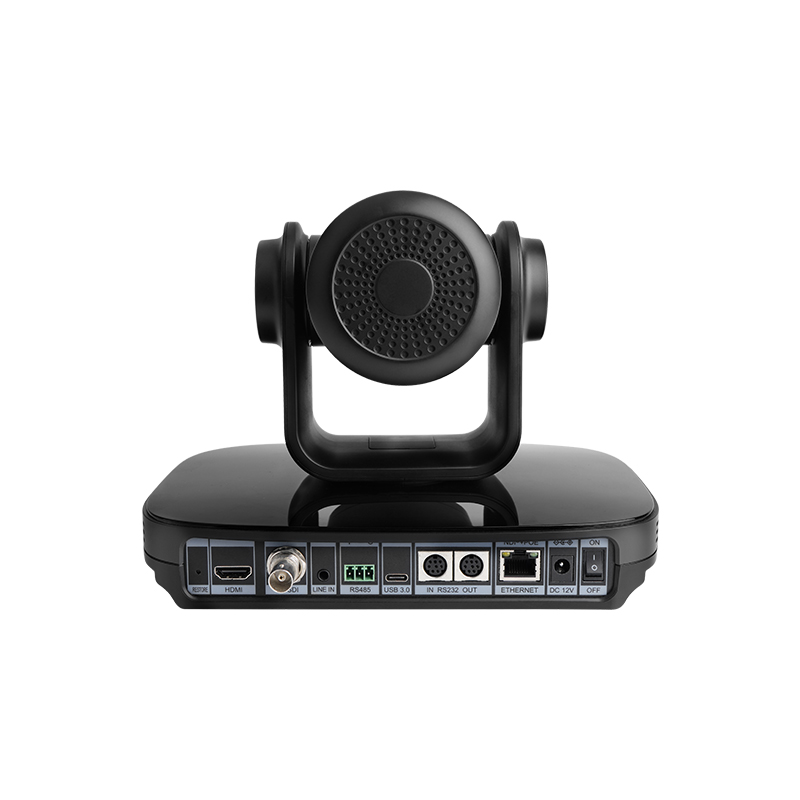

Input/Output Interface
  • HD Output:1xHDMI 2.0 Video format
  • 1x3G-SDI: BNC type, 800mVp-p, 75Ω, Comply with SMPTE 424m standard. Video format
  • Network Interface:1xRJ45
  • Audio Interface:1-ch , 3.5mm Audio Interface, Line In;
  • USB :1-ch,USB3.0, Type-C
  • Communication Interface:1xRS232 In
  • 1xRS485:3pin phoenix port ,Max Distance
  • RESTORE: Support
  • Power Jack:JEITA type (DC IN 12V)
Generic Specification
  • Installation direction:Suit, Flip
  • Display screen:Support
  • Tally light:1PCS (Red and Green)
  • Power indicator light:1PCS(Blue)
  • Status indicator light:1PCS (Green)
  • IR remote input:Support
  • Input Voltage: DC 12V / POE
  • Input Current : 2A(MAX)
  • Operating Temperature: 0°C ~ 40°C
  • Storage Temperature:-40°C ~ 60°C
  • Power Consumption:MAX 18W
  • Size: 223mm*154.8mm*165mm
