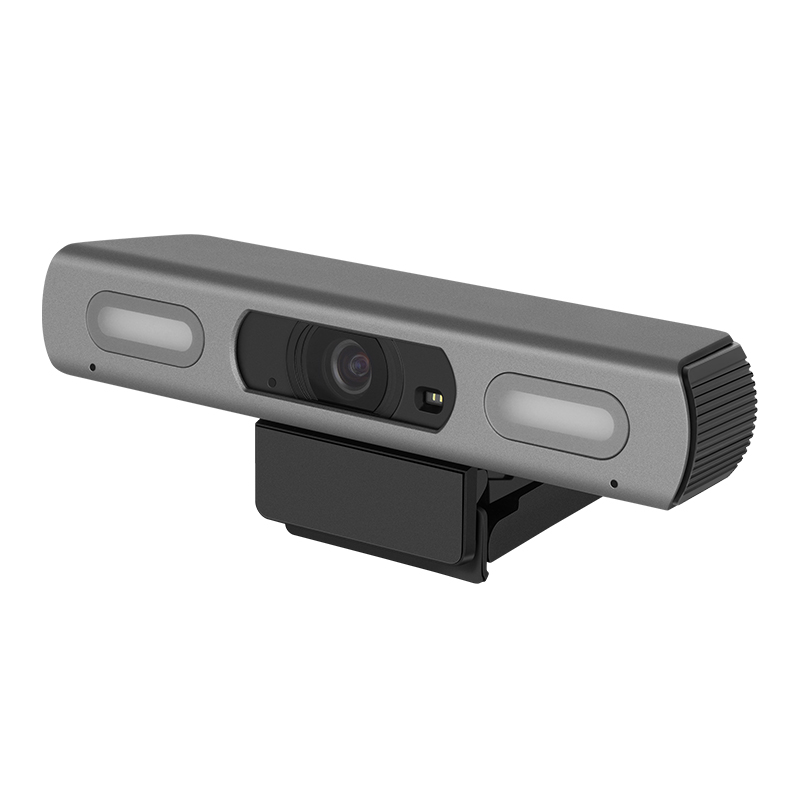

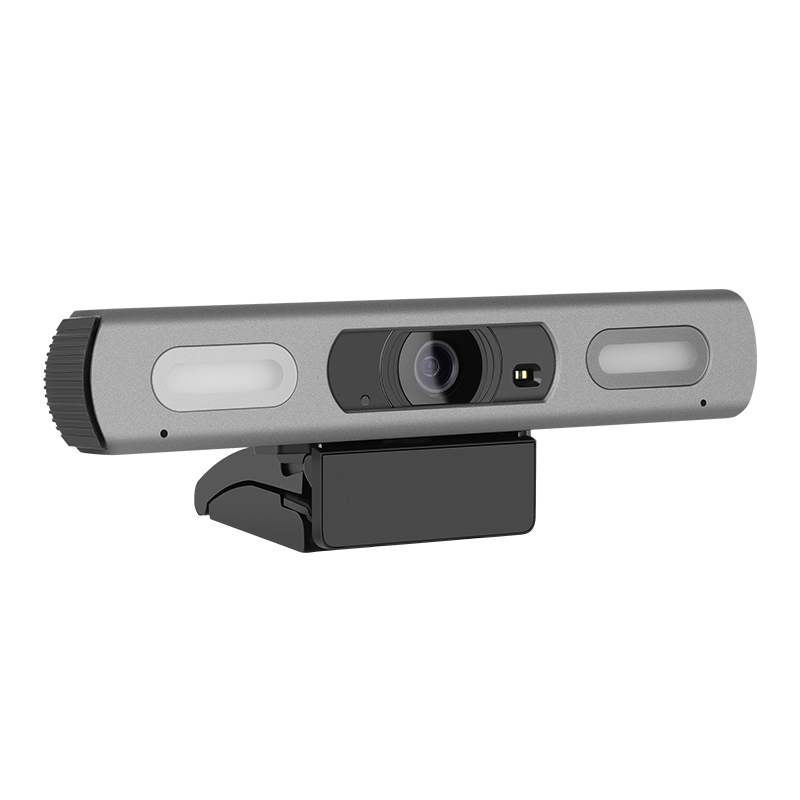

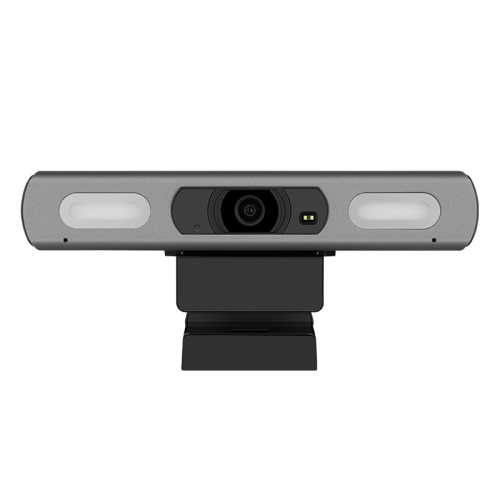

4K Ultra HD USB Camera-RC06
See more

4K Ultra HD USB Camera-RC06

RC06 uses a new generation of SONY 1/2.5-inch, 8.29-megapixel high-quality UHD CMOS sensor, with 84°/120° large viewing Angle and low distortion 4K lens, providing a panoramic view. Auto framing function can adjust the screen ratio according to the change of the number of participants to present a better meeting effect. Support one-key switching between landscape and portrait modes, which is flexible and adaptable to various application scenarios; In portrait mode, support manual or AI automatic adjustment of the field of view angle to ensure that you are always in the C position.
4K Ultra HD
Built-in microphone array
Electronic PTZ
84° field of view (with AF)
120° super wide-angle (without AF)
Soft fill light, illuminate your beauty
The integrated fill light device supports the remote control to remotely adjust the soft light brightness, which can achieve the effect you want under any lighting conditions.
Soft fill light, illuminate your beauty
Auto framing to adjust the screen ratio
Auto framing to adjust the screen ratio
The built-in intelligent automatic viewfinder AI algorithm, combined with face recognition, which can automatically adjust the camera to obtain the best composition as the seat of the meeting room changes.
  • Sensor:1/2.5'', CMOS, Effective Pixel
  • Scanning Mode:Progressive
  • Lens Mount:M12
  • Lens 1:Focus
  • Lens 2:Focus
  • Minimal Illumination:0.5 Lux @ (F1.8, AGC ON)
  • Shutter:1/30s ~ 1/10000s
  • White Balance:Auto, Indoor, Outdoor, One Push, Manual
  • Camera bracket:bracket with damper
  • Digital Noise Reduction :2D,3D digital noise reduction
  • Backlight Compensation:Support
  • Horizontal/Portrait screen mode:Support
  • Low Light:Support
  • AI mode: Autoframing/Speaker Tracking/Body Tracking
Input/Output Interface

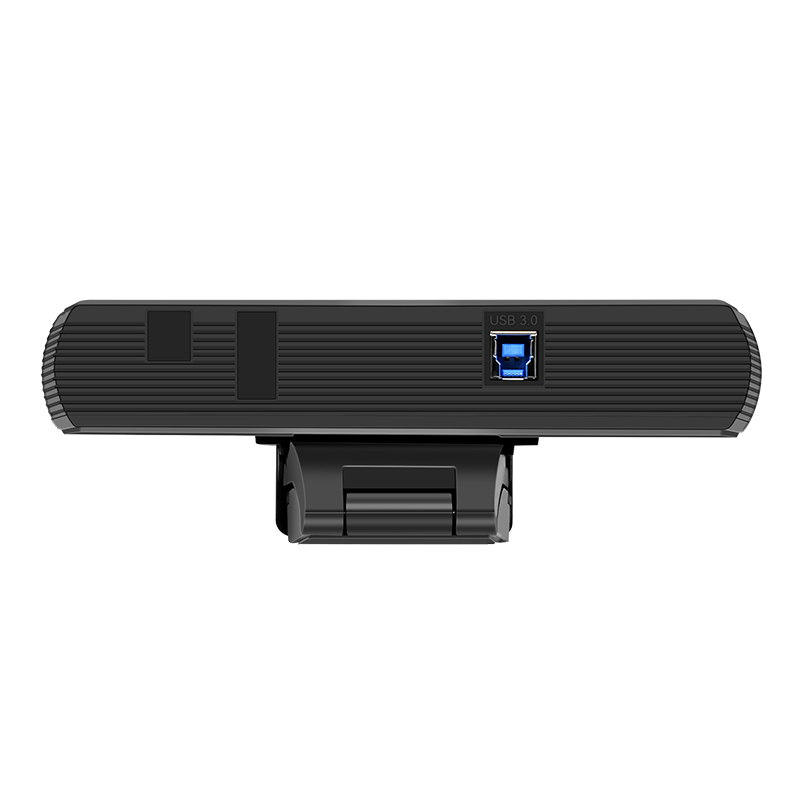

  • USB Interface:1xUSB 3.0
USB Features
  • Operate System:Windows® 7 (1080p and under only), Windows 8.1, Windows 10 or higher macOS™ 10.10 or higher Google™ Chromebook™ Version 76.0.3809.136 or higher versions Linux(support for UVC needed);Android
  • Hardware Requirements:2.4 GHz Intel® Core 2 Duo processor or higher 2 GB RAM or more USB 2.0 port (USB 3.0 required for 4K)
  • Color System / Compression: MJPEG/YUY2/H.264
  • Video Format: [email protected]/25fps, [email protected]/25fps, [email protected]/25fps, [email protected]/25fps, [email protected]/25fps etc
  • USB Video Communication Protocol:UVC 1.1
  • UVC PTZ: Support(EPTZ)
General specification
  • Input Voltage:5V (USB power supply)
  • Current Consumption:800mA(max)
  • Operating Temperature:-10°C ~ 40°C (14°F ~ 104°F)
  • Storage Temperature:-40°C ~ 60°C (-40°F ~ 140°F)
  • Power Consumption:4W(max)
  • Size:194mm x 34mm x 42mm (without bracket)
  • Net Weight:0.5KG
  • MTBF:30000h
Package Contents
