4K PTZ Video Conference Camera-RC91
RC91
See more

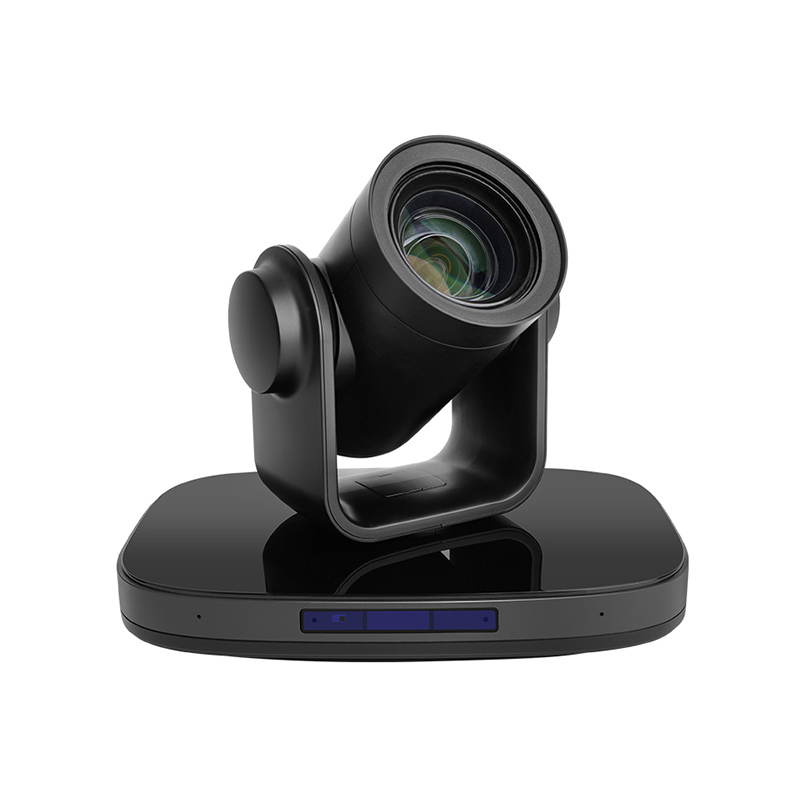

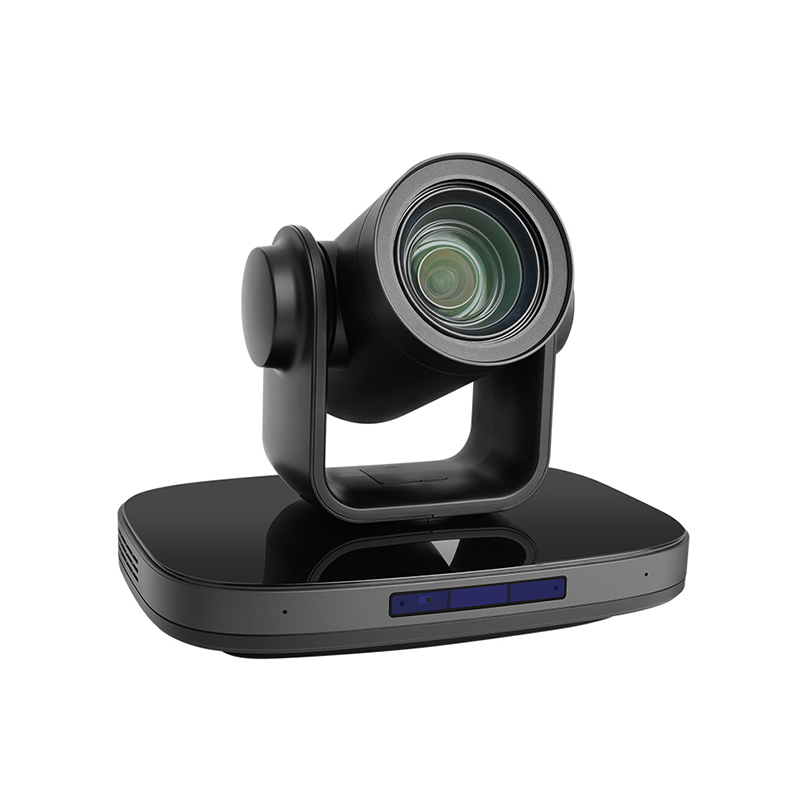

4K PTZ Video Conference Camera-RC91

RC91 uses a new generation of Sony 1 / 2.8 inches high-quality UHD CMOS sensor with a maximum of 8.4 million pixels to output 4K (3840x2160) ultra-high resolution images, downward compatible with 1080P, 720P and other resolutions. Support HDMI2.0, can directly output 4KP60 uncompressed digital video. Combined with AI tracking and smooth PTZ function, it is used for live events, auditorium lectures, sports and game competitions, online and distance learning courses, multinational conferences, personnel training courses, live streaming and other application scenarios.
60FPS 4K Ultra HD
Plug and play
255 presets
AI tracking
Intelligent exposure
Remote control
Powerful CMOS sensor outputs high quality images
RC91 uses a new generation of Sony 1 / 2.8 inches, up to 8.4 megapixel high-quality UHD CMOS sensors to output 4K (3840x2160) ultra-high resolution images, downward compatible with 1080P, 720P and other resolutions. It delivers 4K of brilliant colors and detailed video at 60fps, even in environments that are too dark or too bright.
Powerful CMOS sensor outputs high quality images
255 presets, one-key switching to the preset position
255 presets, one-key switching to the preset position
Rocware RC91 with unique auto patrol feature optimizes your camera controls to capture content automatically and seamlessly between your preset areas. With preset area tracking, you only need a RC91 to perform seamless switching of all your preset areas, giving your videos a wide variety of shooting ranges.
Specifications
Camera
  • Video System:4K@60fps,[email protected], 4K@50fps,4K@30fps, 4K@25fps, [email protected], 1080P@60fps, 1080P@50fps, 1080I@60fps,1080I@50fp, 1080P@30fps,[email protected]@59.94fps,[email protected], [email protected], 720P@60fps,720P@50fps
  • Sensor:1/2.8'', CMOS, Effective Pixel
  • Scanning Mode:Progressive
  • Lens:12x, f = 3.47mm ~41.65mm, F 1.84 ~ F 3.72
  • Digital Zoom:16x
  • Minimal Illumination:0.5Lux @ (F1.8, AGC ON)
  • Shutter:1/30s ~ 1/10000s
  • White Balance:Automatic, indoor, outdoor, one touch, manual
  • Backlight Compensation :Support
  • Digital Noise Reduction: 3D Digital Noise Reduction
  • Video S/N:≥55dB
  • Horizontal Angle of View :80.8° ~ 7.5°
  • Vertical Angle of View:49.9° ~ 4.3°
  • Horizontal Rotation Range :±170°
  • Vertical Rotation Range -30° ~ +90°:
  • Pan Speed Range :1.7° ~ 100°/s
  • Tilt Speed Range :1.7° ~ 69.9°/s
  • H & V Flip:Support
  • Image Freeze:Support
  • PoE:Support
  • Number of Preset :255
  • Preset Accuracy :0.1°
IPC Features
  • Video Compression:H.265/H.264/MJPEG
  • Video Stream: Main Stream, Sub Stream
  • Main Stream Resolution :3840x2160, 1920x1080, 1280x720, 1024x576 etc.
  • Sub Stream Resolution: 720x576, 720x480, 320x240 etc.
  • Video Bit Rate :32kbps~102400kbps
  • Bit Rate Type: Variable Rate, Fixed Rate
  • Frame Rate:50Hz
  • Audio Compression:AAC、G711A
  • Audio Bit Rate : 96Kbps, 128Kbps
  • Support protocols: NDI®|HX2, SRT, TCP/IP,HTTP,RTSP,RTMP(s),Onvif,DHCP,Multicast and so on
USB Featured(USB3.0)
  • Operate System:Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
  • Color System:YUY2 / H.264 / MJPEG /H.265
  • Video Format:YUY2
  • Audio on USB: Support
  • USB Video Communication Protocol: UVC 1.1~1.5
  • UVC PTZ: Support

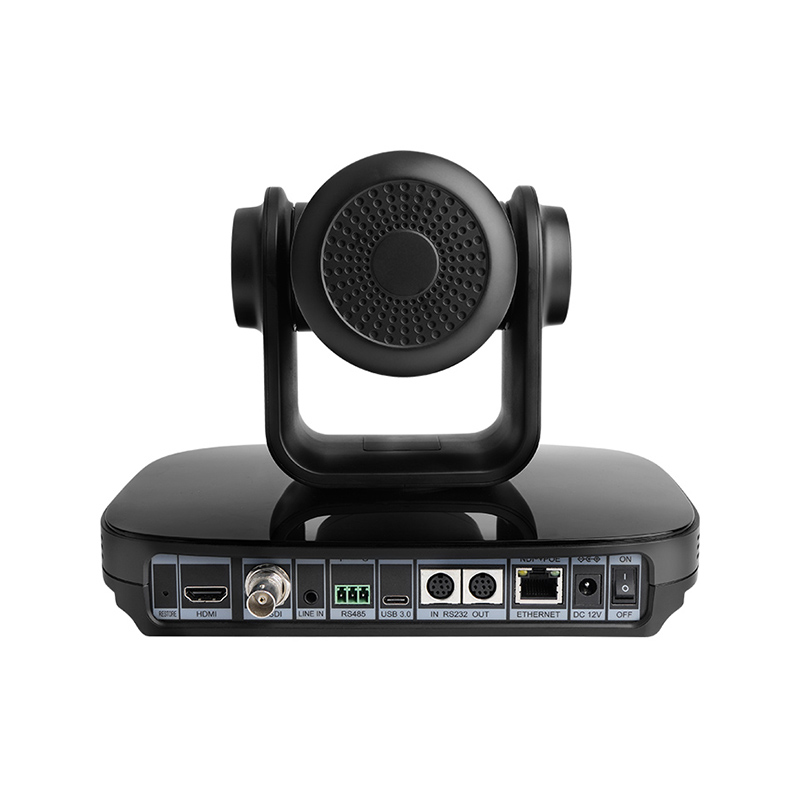

Input/Output Interface
  • HD Output:1xHDMI
  • Network Interface:1xRJ45
  • Audio Interface:1-ch
  • USB :1xUSB3.0
  • Communication Interface:1xRS232 In
  • RESTORE: Support
  • Power Jack: JEITA type(DC IN 12V)
Generic Specification
  • Installation direction:Suit, Flip
  • Display screen:Support
  • Tally light:1PCS (Red and Green)
  • Power Indicator light :1PCS(Blue)
  • Status indicator light :1PCS (Green)
  • IR remote input :Support
  • Input Voltage: DC 12V / POE
  • Operating Temperature: 0°C ~ 40°C
  • Storage Temperature:-40°C ~ 60°C
  • Power Consumption: MAX 18W
  • Size: 223mm*154.8mm*165mm
  • Net Weight :1.8KG
