USB Video Conference Camera-RC720UV
See more

USB Video Conference Camera-RC720UV

RC720UV adopts high-quality high-definition CMOS sensor, which can output 1080P image. Support 20x optical zoom and 16x digital zoom, which can be seen clearly from far and near. Using 2D & 3D noise reduction technology, the image is still clear in low-light environment. Support 255 preset positions, one-key switch without adjustment. Widely used in medical, teaching, live streaming, conference and other application scenarios.
1080p full HD
20x optical zoom
Day/Night Vision
Remote control
255 presets
High-quality HD CMOS sensor
High-quality HD CMOS sensor with 2.07 million effective pixels for high-quality images up to 1920x1080.
High-quality HD CMOS sensor
Low illumination
Low illumination
The application of 2D and 3D noise reduction algorithm greatly reduces image noise. Even under the condition of ultra-low illumination, it still keep the picture clean and clear, and the SNR of image is as high as 55dB.
  • Video System:1080P, 720P, 540P, 480P, 360P, 240P etc.
  • Sensor:1/2.7 inch, CMOS,
  • Effective Pixel: 2.07M
  • Scanning Mode:Progressive
  • Lens:20x, f5.5mm ~ 110mm, F1.6 ~ F3.5
  • Digital Zoom: 16x
  • Minimum Illumination:0.5Lux @ (F1.8, AGC ON)
  • Shutter:1/30s ~ 1/10000s
  • White Balance:Auto, Indoor, Outdoor, One Push, Manual, VAR
  • Backlight Compensation:Support
  • Digital Noise Reduction: 2D & 3D Digital Noise Reduction
  • Signal Noise Ratio: ≥55dB
  • Horizontal Angle of View:51.3° ~ 2.7°
  • Vertical Angle of View: 29.7° ~ 1.5°
  • Horizontal Rotation Range:±170°
  • Vertical Rotation Range: -30° ~ +90°
  • Pan Speed Range:2.7° ~ 35.7°/s
  • Tilt Speed Range:2.7° ~ 31.5°/s
  • H & V Flip:Support
  • Image Freeze: Support
  • Number of Preset:255
  • Preset Accuracy:0.1°
USB Features
  • Operate System:Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
  • Color System / Compression: MJPEG/YUY2/H.264
  • Video Format :YUY2 (BULK) / YUY2 (ISOC) / H.264 AVC / H.264 SVC / MJPEG
  • USB Audio:Support
  • USB Video Communication Protocol:UVC 1.1 ~ UVC 1.5
  • UVC PTZ:Support
IPC Video Features
  • Video Compression:H.264/H.265/MJPEG
  • Video Stream: First Stream, Second Stream
  • First Stream Resolution:1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360
  • Second Stream Resolution:1280x720, 1024x576, 720x576 (50Hz support), 720x480 (60Hz support), 720x408, 640x360, 480x270, 320x240, 320x180
  • Video Bit Rate:32Kbps ~ 20480Kbps
  • Bit Rate Type: Variable Rate, Fixed Rate
  • Frame Rate: 50Hz
  • Audio Compression:AAC
  • Audio Bit Rate:96Kbps, 128Kbps, 256Kbps
  • Protocols :TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, Multicast, etc.

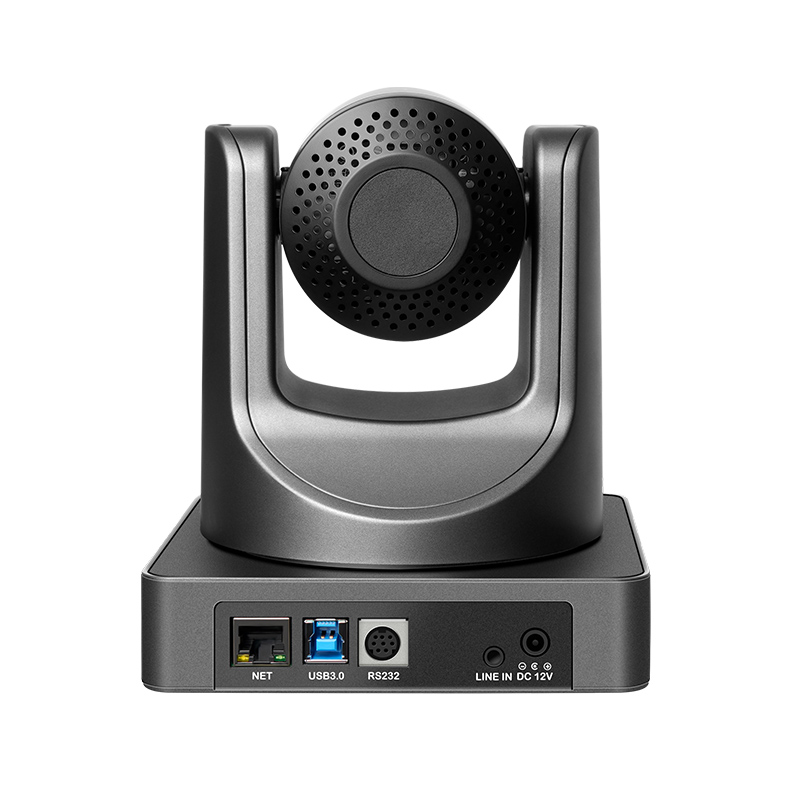

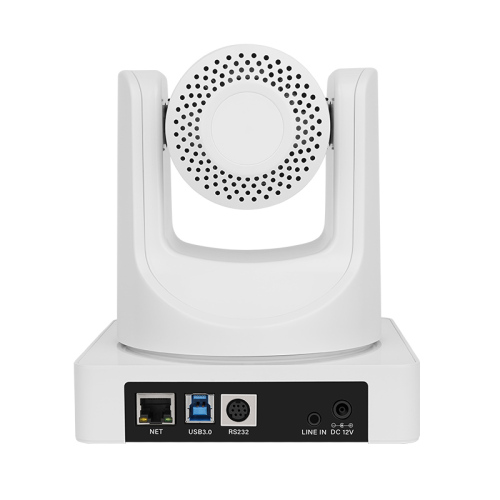

Input/Output Interface
  • Network Interface:1 x RJ45 10/100M Adaptive Ethernet Ports
  • USB Interface: 1 x USB 3.0 Type B female jack
  • Audio Interface:1-ch 3.5mm Audio Interface, Line In
  • Communication Interface:1 x RS232 IN
  • Power Jack:JEITA type (DC IN 12V) / USB B type (DC IN 5V)
Physical Parameter
  • Input Voltage:DC 12V / DC 5V (USB power supply)
  • Current Consumption:12V 1.0A (MAX) / 5V 1.5A (MAX)
  • Operating Temperature: -10°C ~ 40°C
  • Storage Temperature:-40°C ~ 60°C
  • Power Consumption:12W (Max)
  • MTBF:>30000h
  • Size: 144 x 144 x 168mm
  • Net Weight:1.17Kg
Package Contents
