USB3.0 HD Video Conference Camera-RC58
RC58
See more

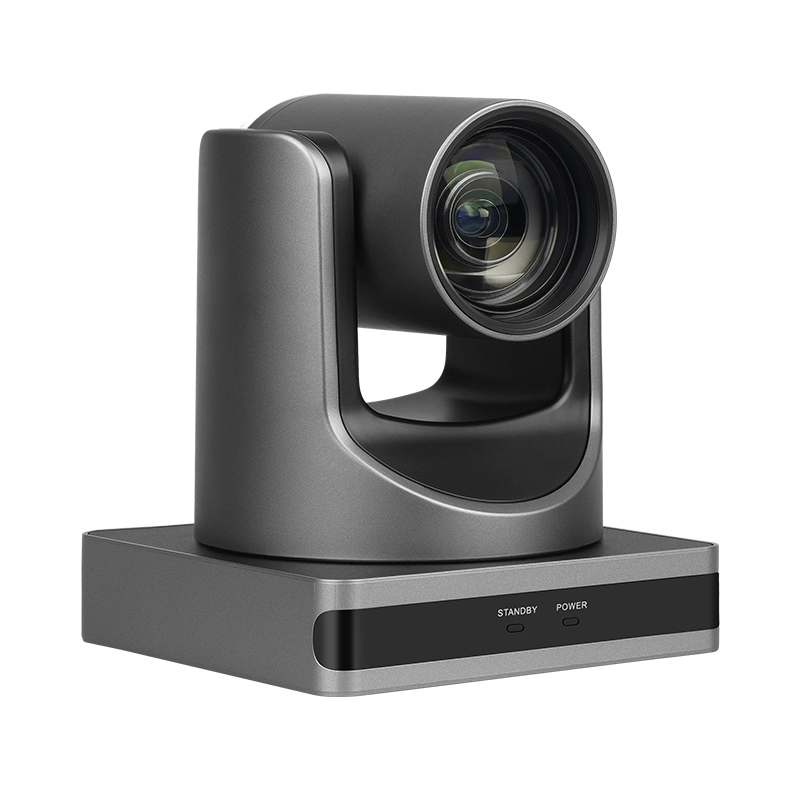

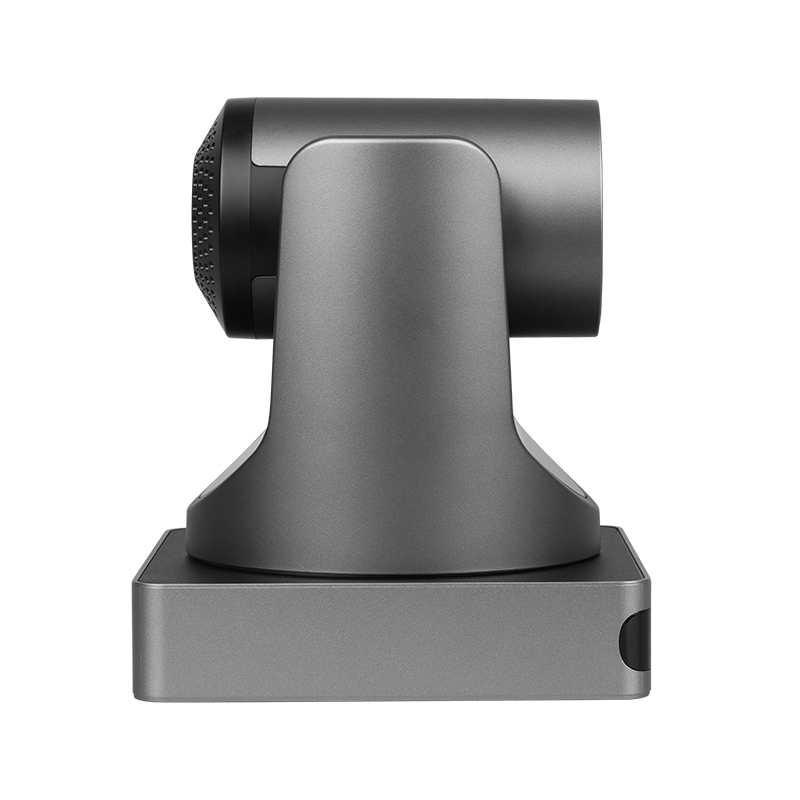

USB3.0 HD Video Conference Camera-RC58

RC58 adopts a new generation of Panasonic 1/2.8-inch high-quality HD CMOS sensor with 2.07 million effective pixels to achieve high-quality images with a maximum resolution of 1920x1080 and a maximum output frame rate of 60fps under 1080P. 12x optical zoom and 16x digital zoom to capture crystal-clear images with a field of view of 72.5° ~ 6.9°. 255 presets are convenient for switching the screen without manual adjustment, which greatly improves the efficiency of meetings.
1080P60FPS HD
2D & 3D noise reduction
Remote control
12x optical zoom
16x digital zoom
HMDI/USB3.0/IP
Powerful CMOS sensor outputs high quality images
Using a new generation of Panasonic 1/2.8-inch, 2.07 million effective pixel high-definition CMOS sensor to achieve high-resolution and high-quality images of up to 1920x1080.
Powerful CMOS sensor outputs high quality images
255 presets, one-key to switch screen
255 presets, one-key to switch screen
255 presets, easy to switch the screen without manual adjustment.
Specifications
Camera
  • Video System: 1080P60,1080P50,1080P30,1080P25,720P60,720P50
  • Sensor: 1/2.8'', CMOS, Effective Pixel
  • Scanning Mode: Progressive scanning
  • Lens : 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
  • Digital Zoom: 16xMinimal Illumination 0.5Lux @ (F1.8, AGC ON)
  • Shutter: 1/30s ~ 1/10000s
  • White Balance: Automatic, indoor, outdoor, one touch, manual,VAR
  • Backlight Compensation : Supported
  • Digital Noise Reduction: 2D&3D digital noise reduction
  • Video S/N: ≥55dB
  • Horizontal Angle of View : 72.5° ~ 6.9°
  • Horizontal Angle of View : 44.8° ~ 3.9°
  • Horizontal Rotation Range : ±170°
  • Vertical Rotation Range : -30° ~ +90°
  • Pan Speed Range : 2.7° ~ 35.7°/s
  • Tilt Speed Range : 2.7° ~ 31.5°/s
  • H & V Flip : Supported
  • Image Freeze : Supported
  • Number of Preset : 255
  • Preset Accuracy : 0.1°
Network Features
  • Video Compression;H.264/MJEPG:
  • Video Stream:First streaming, second streaming
  • Main Stream Resolution :1920x1080,1280x720,1024x576,960x540,640x480,640x360
  • Sub Stream Resolution:1280x720,1024x576,720x480,720x408,640x360,320x240,320x180
  • Video Bit Rate:32Kbps ~ 20480Kbps
  • Bit Rate Type:Variable bit rate,Fixed bit rate
  • Frame Rate:50Hz
  • Audio Compression:AAC
  • Audio Bit Rate:96Kbps, 128Kbps, 256Kbps
  • Support protocols:TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast and so on
USB Featured
  • Operate System: Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
  • Color System / Compression: YUY2 / H.264 / MJPEG
  • Video Format YUY2 (isochronous mode): MAX 1080P@60fps; H.264 AVC
  • Audio on USB: Supported
  • USB Video Communication Protocol: UVC 1.1~1.5
  • UVC PTZ: Supported

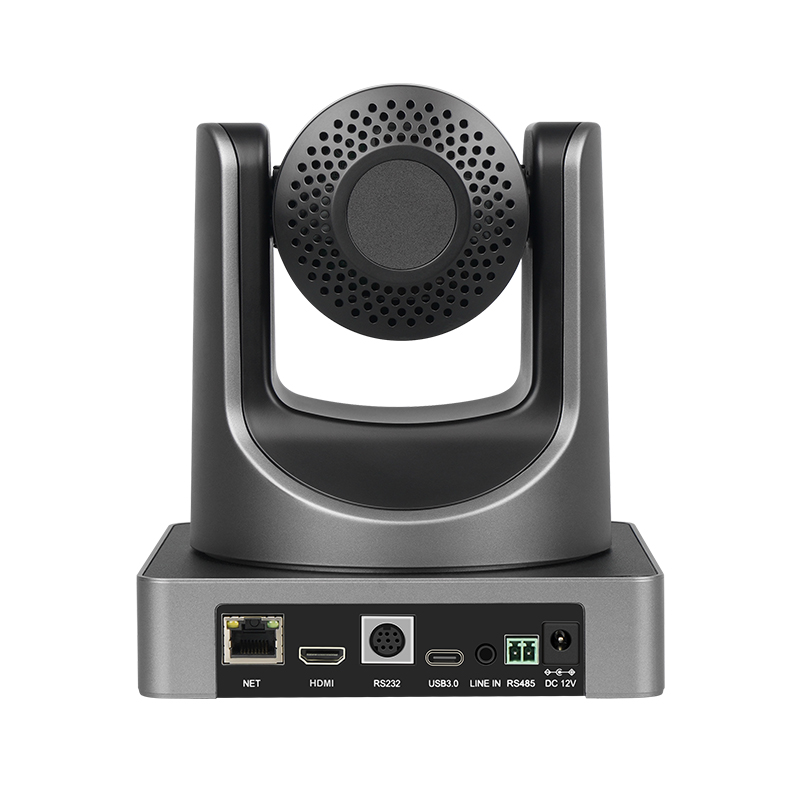

Input/Output Interface
  • USB :1-ch USB3.0, Type-C
  • HD Output:1xHDMI 1.4b
  • Network Interface:1xRJ45
  • Audio Interface:1-ch 3.5mm Audio Interface, Line In
  • Communication Interface:1xRS232 In
  • Power Jack:JEITA(DC IN 12V)/USB Type-B(DC IN 5V)/PoE
Generic Specification
  • Input Voltage:DC 12V/DC 5V/PoE(802.3af)
  • Input Current :12V 1.0A(MAX)/5V 1.5A(MAX)
  • Operating Temperature:-10°C ~ 40°C
  • Storage Temperature:-40°C ~ 60°C
  • Power Consumption:MAX 12W
  • MTBF:>30000h
  • Size:144mm x 144mm x 167.9mm
  • Net Weight:1.4kg
Package Contents
