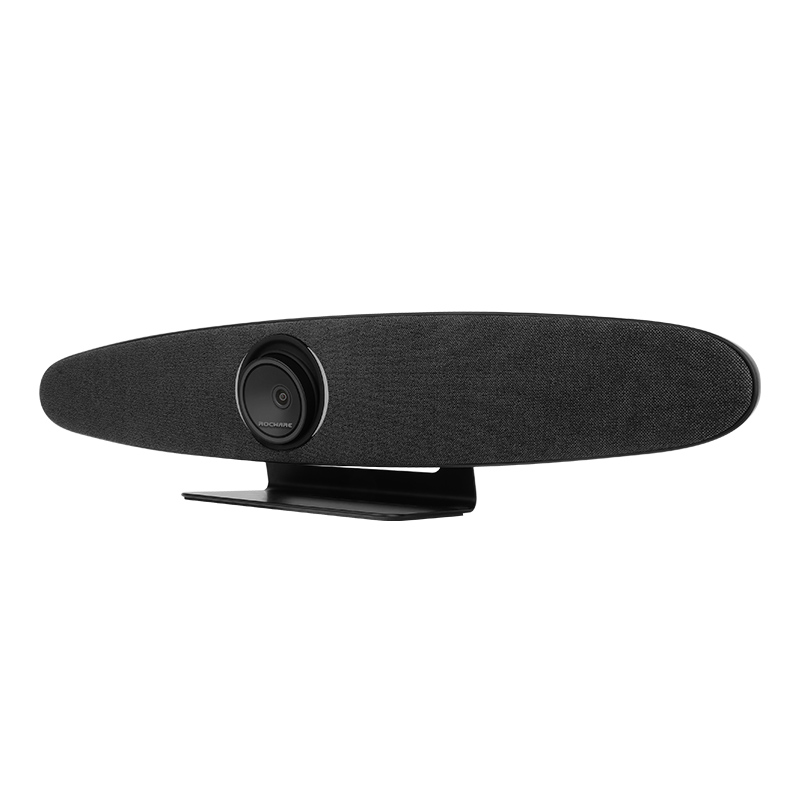

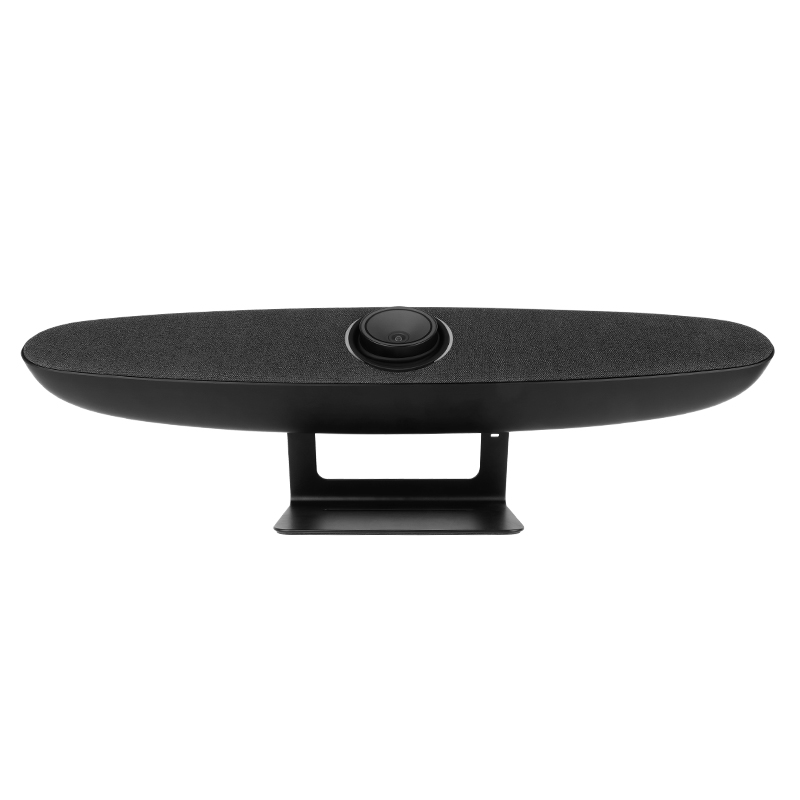

4K UHD ALL-IN-ONE Soundbar-RC10

RC10 is equipped with a 1/2.5-inch, 8.51 megapixel high-quality UHD CMOS sensor, which can output 4K (3840x2160)@30fps Ultra high definition image, downward compatible with 1080P, 720P and other resolutions. Meet users needs for different video experiences. It is specially designed for small and medium-sized conference rooms, especially the Huddle Room for 4 to 6 people. It helps enterprises to rediscover the potential of internal small and micro conference spaces. On the one hand, meetings can be held more efficiently, and on the other hand, it can save rental costs.
4K Ultra HD
All-in-one design
voice tracking
Auto framing
Audio 3A Algorithm
Bluetooth 5.0
All-in-one design, plug and play
3-in-1 design of 4K ultra HD camera, beamforming microphone and full-frequency speaker, plug and play, reduces wiring and makes video communication easy
All-in-one design, plug and play
Built-in PTZ , wide field of view
Built-in PTZ , wide field of view
121° wide field of view (110° horizontal field of view), built-in PTZ (pan and tilt ±15°), easier for attendees to enter the conference meeting.
  • Video Resolution:4K/30, 1080P/30, 720P/30 etc
  • Sensor:1/2.5 inches, CMOS, Effective Pixels
  • Lens:121° (DFOV), 110° (HFOV), 75° (VFOV), 5x digital zoom,Horizontal/pitch ±15°
  • Tripod Head:Mechanical PTZ (MPT) + e-PTZ (EPTZ)
  • Digital Noise Reduction :2D & 3D Digital Noise Reduction
  • S/N Ratio:≥ 55dB
  • Backlight Compensation :Support
USB Features
  • Type of Connection :USB 3.0, backward compatible with USB 2.0
  • Color System / Compression: MJPEG /YUY2
  • USB Audio:32K sampling rate, UAC1.0 support
  • USB Video Communication Protocol:UVC 1.1
  • UVC PTZ Control:Support
  • Installation Method:A variety of installation options supported, including desktop placement, wall mounting, installation with wall-mounted TV, etc.
  • Supplied Cables:USB Cable
  • Safety Protection:Kensington Lock
  • Full-Frequency Speaker:96 dB SPL at 0.5 m
  • Microphone Array:Beamforming microphone with a pickup distance of 6m
  • Expansion MIC:Support (Optional)

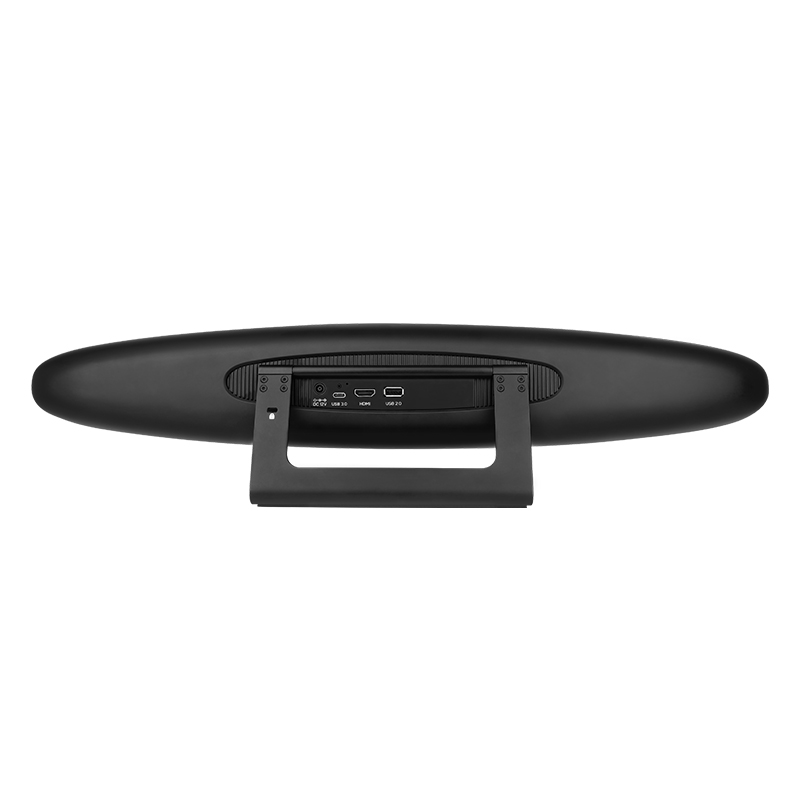

I/O Interface
  • HD Output:1 x HDMI, Version 1.4b
  • USB Interface:1 x USB3.0, Type C; 1 x USB2.0, Type A
  • Wireless:Bluetooth data communication (Bluetooth 5.0)
General Specifications
  • Power Supply:DC 12V, 2A (Max.)
  • Operating Temperature:0° C ~ 40° C
  • Storage Temperature:40° C ~ 60° C
  • Size:601mm x 141mm x 115mm
  • Net weight:2.5 Kg
Package contents
