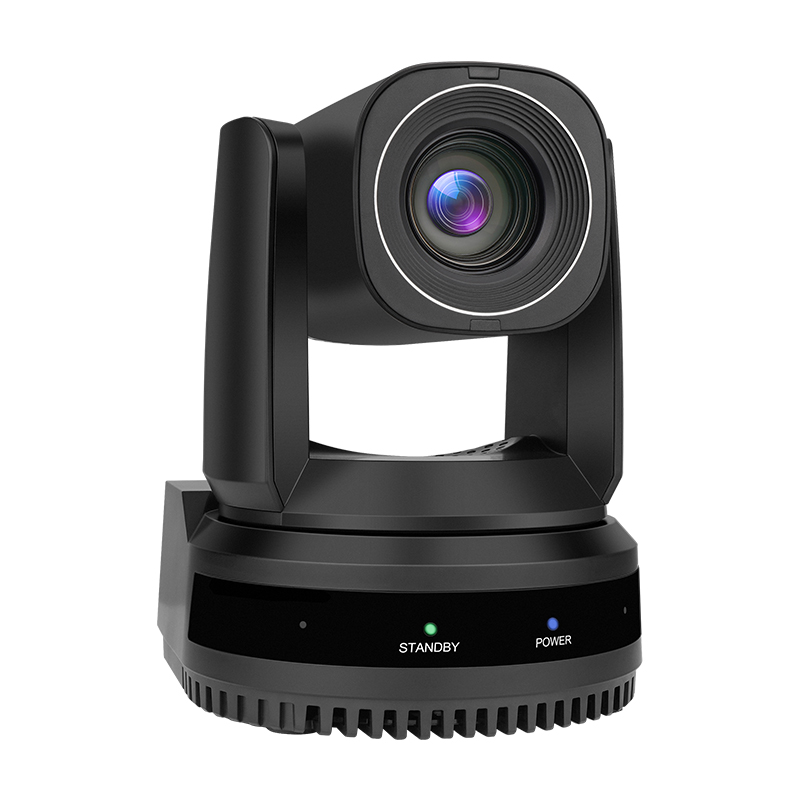

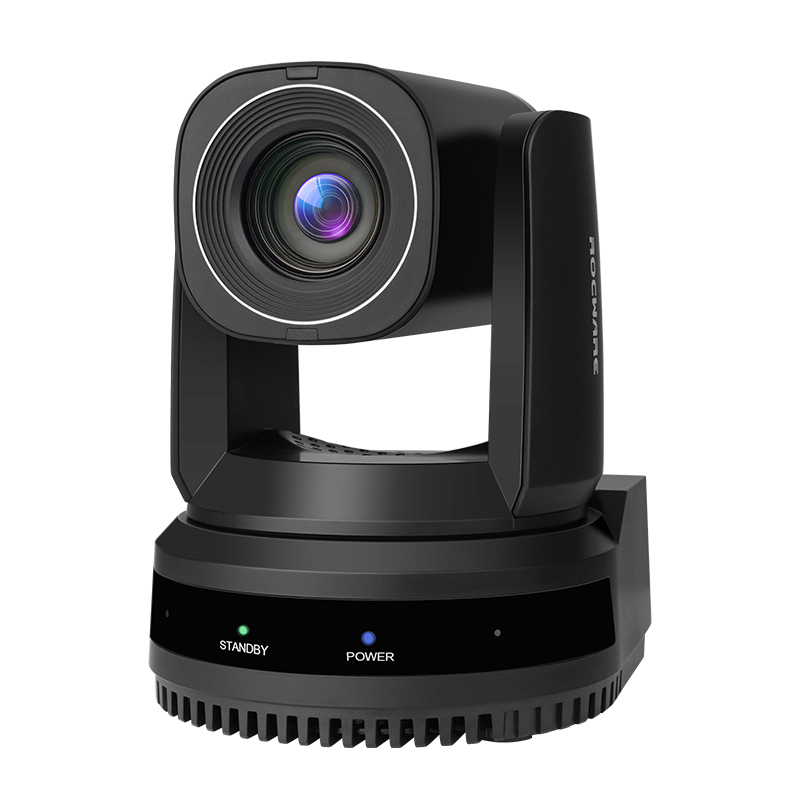

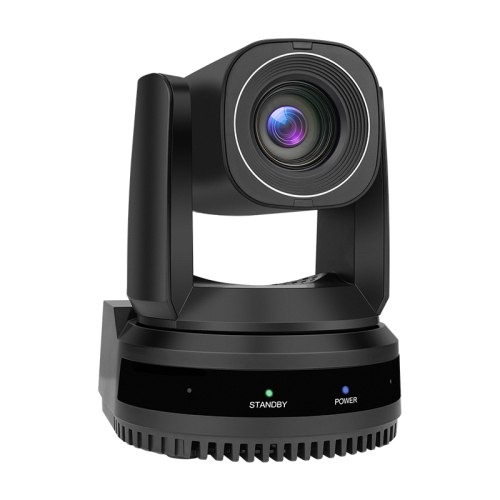

RC820-X supports 1080P60 NDI|HB technology and is equipped with a 20x optical zoom lens, which can achieve unparalleled ultra-high-resolution image quality and lossless effects that are closer to vision. Upgraded AI technology enables accurate human tracking and auto framing. The new-generation ISP image processing algorithm and leading auto-focus technology enable the lens to focus quickly, accurately and stably, and the image output performance is significantly improved. Widely used in education recording and broadcasting, distance education, video conferencing, live
streaming, broadcasting and other industries.
1080P60 HD
20x optical zoom
NDI® | HB
AI tracking
USB 3.0
Remote control
1080p60 NDI® | HB
Supports 1080p60 NDI® | HB technology, bringing low latency and high -quality audio and video signal transmission, which can achieve unparalleled ultra -high -resolution picture quality and closer to visual lossless effects.
A new generation of ISP image processing algorithm
The new generation of ISP image processing algorithm provides perfect white balance and auto exposure functions, to significantly improve the output performance of the camera image and better imaging effect. Widely used in education recording and broadcasting, distance education, video conferencing, live broadcasting, broadcasting and other industries.
Specifications
Camera
Video System:1080P60，1080P59.94，1080P50，1080I60，1080I59.94，1080I50，1080P30，1080P29.97，1080P25，720P60，720P59.94，720P50
Sensor:1/2.8'', CMOS, Effective Pixel
Scanning Mode:Progressive
Lens :20x, f4.42mm ~ 88.5mm, F1.8 ~ F2.8
Minimal illumination:0.5 Lux @ (F2.0, AGC ON)
Shutter:1/30s ~ 1/10000s
White balance:Auto, Manual, One Push, VAR
Digital Noise Reduction :2D&3D Digital Noise Reduction
Backlight Compensation :Support
Video S/N:≥55dB
Horizontal Angle of View:60.7° ~ 3.36°
Vertical Angle of View:34.1° ~ 1.89°
Horizontal Rotation Range:±170°
Vertical Rotation Range: -30° ~ +90°
Tilt Speed Range:1.7° ~ 100°/s
Tilt Speed Range:1.7° ~ 69.9°/s
H & V Flip:Support
Image Freezing:Support
Number of Preset:255
Preset accuracy:0.1°
USB Features
Operating System:Windows® 7 (1080p and lower resolution only), Windows 8.1, Windows 10 or higher macOS™ 10.10 or higher Google™ Chromebook™ Version 29.0.1547.70 or higher Linux (need to support UVC)
Hardware Requirements :2.4 GHz Intel® Core 2 Duo processor or higher 2 GB RAM or higher USB 2.0 interface
Color System / Compression:YUY2/MJPEG/H.264
Video Format: Support a variety of video formats with different frame rates and resolutions, up to 1080P60 YUY2 output
USB Video Communication Protocol:UVC 1.1 or UVC 1.5
USB Audio:32K sampling rate, support UAC2.0
UVC PTZ Control:Support
Audio
Microphone Arrays :Built-in dual microphones, 100Hz to 16KHz frequency response
LINE IN:Support LINE IN
Audio Output: Support HDMI, USB, LAN, SDI and other audio output
IPC Features
Video Coding Standard: H.264/H.265
Video Stream: Main Stream, Sub Stream
Main Stream Resolution: 1920x1080,1280x720,1024x576,960x540,640x480,640x360
Sub Stream Resolution: 1280x720,1024x576,720x576, 720x480,720x408,640x360,480x270,320x240,320x180
Video Bit Rate:32Kbps ~ 102400Kbps
Bit Rate Type:Variable Rate, Fixed Rate
Frame Rate:1fps ~ 60fps
Audio Compression:AAC
Audio Bit Rate:96Kbps, 128Kbps, 256Kbps
Support Protocols :NDI, TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast,SRT etc.

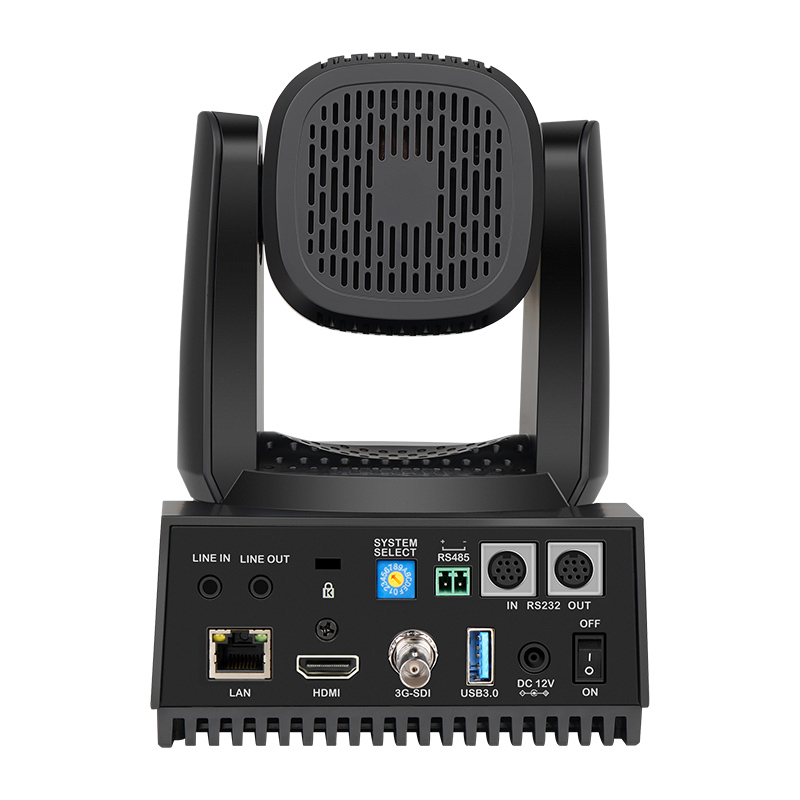

Input/output Interface
USB Interface:1xUSB 3.0
HDMI&SDI:1xHDMI , 1x3G-SDI
LAN :1xRJ45 1000M Adaptive Ethernet port
Audio Interface:Built-in two microphones, support 1xLine In, switchable. 1x Line Out
