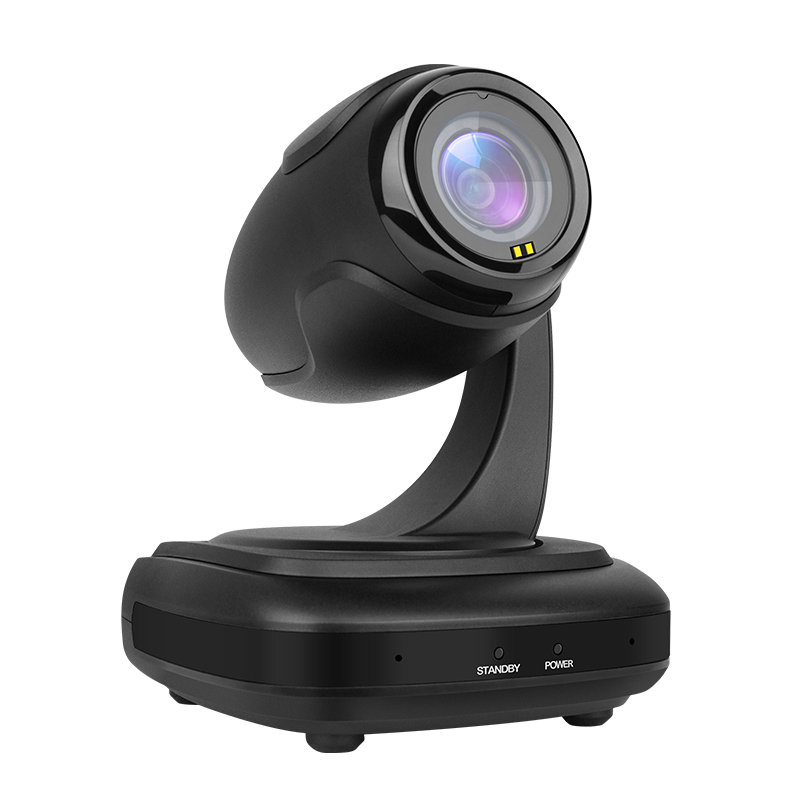

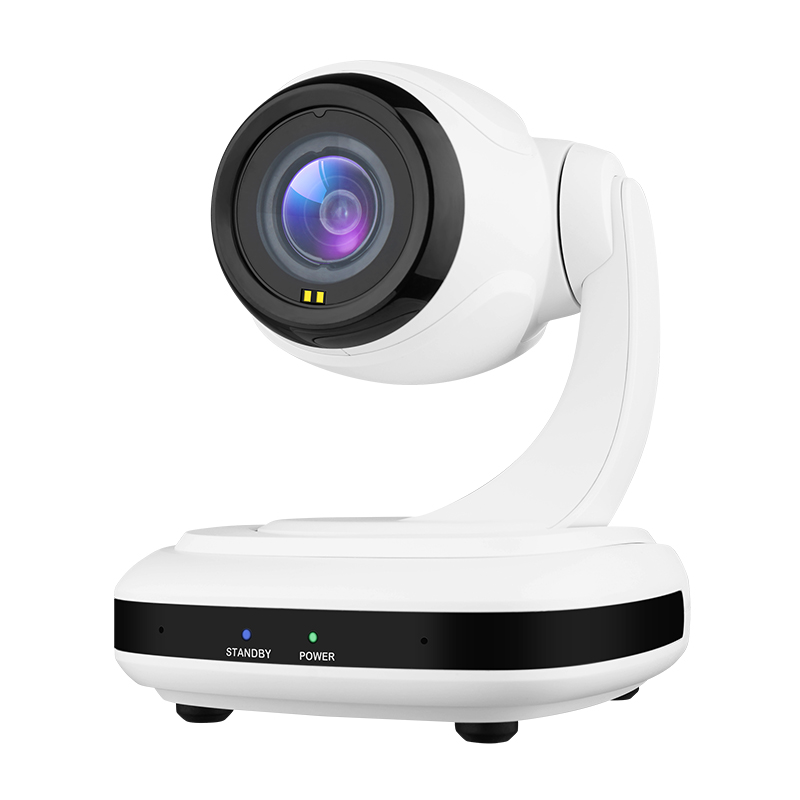

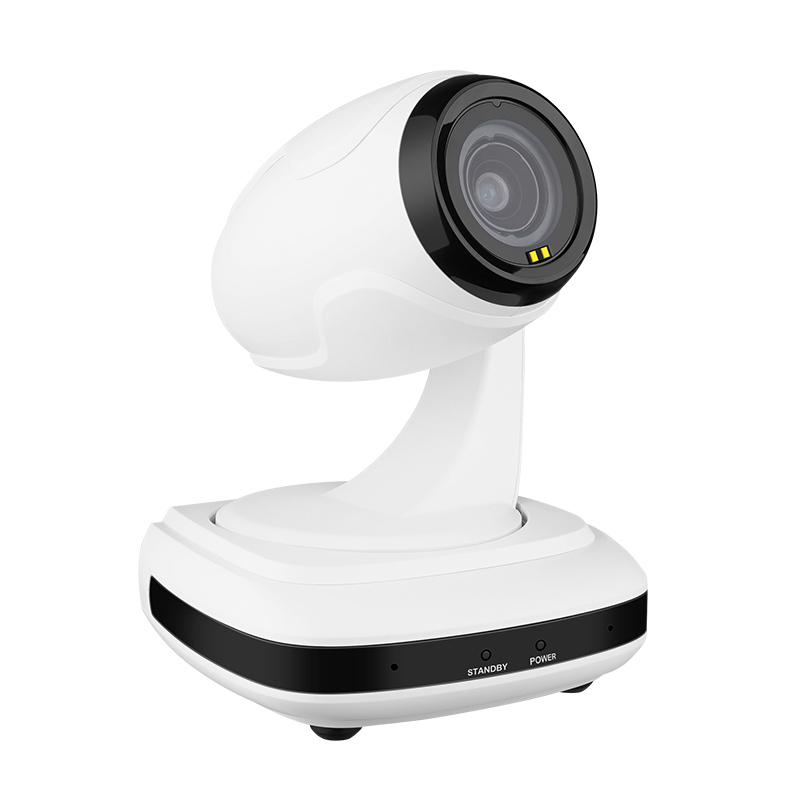

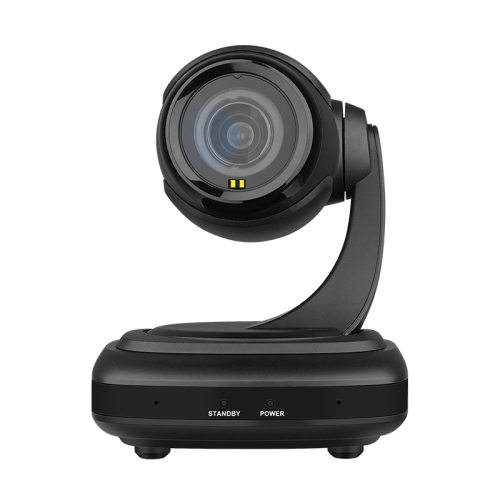

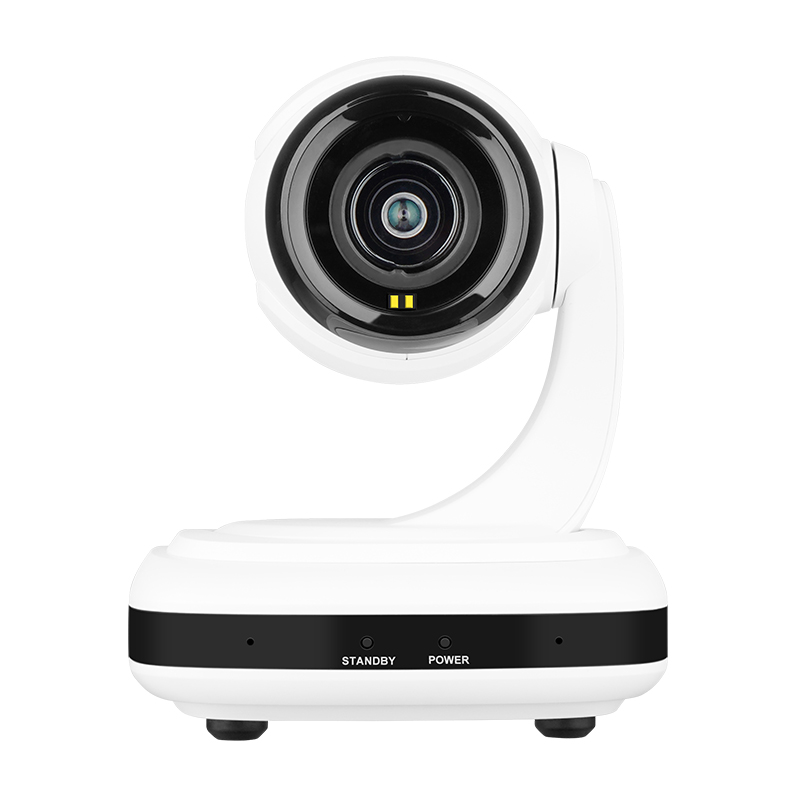

The camera is equipped with a new generation of 1/2.9-inch high-quality HD CMOS sensor with 2 million effective pixels, with 90° high-quality ultra-wide focal lens, supporting 3x optical zoom, and 16x digital zoom, the picture quality is clear and can be seen from far and near. At the same time, 2D & 3D digital noise reduction is applied, and the image is still clear even in low light conditions. 255 presets, one key to switch the screen without manual control. Widely used in small conference rooms, medical industry and other application scenarios.
1080P HD
90° lens
3x optical zoom
Auto framing
USB2.0
Humanoid Tracking
90° Wide-angle Lens
Adopts 90° high-quality ultra-wide focal lens,providing a panoramic view.
AI humanoid tracking
Using the deep learning technology to extract the target's characteristics and allow smooth face tracking, no matter where the face is facing. It is suitable for application scenarios such as presenter automatic tracking and can flexibly select tracking targets.
Specifications
Camera
Sensor:1/2.9'', CMOS, Max Effective Pixel
Scanning Mode:Progressive
Lens :3x, f3.35mm ~ 10.05mm, F1.7 ~ F3.0
Digital Zoom:16x
Minimal Illumination:0.5Lux @ (F1.8, AGC ON)
Shutter:1/30s ~ 1/10000s
White Balance:Auto, Indoor, Outdoor, One Push, Manual,VAR
Backlight Compensation :Support
Digital Noise Reduction: 2D&3D Digital Noise Reduction
S/N :≥55dB
Horizontal Angle of View:90° ~ 30.7°
Vertical Angle of View:52° ~ 18.4°
Horizontal Rotation Range:±170°
Vertical Rotation Range :-30° ~ +90°
Pan Speed Range:2.7° ~ 35.7°/s
Tilt Speed Range:2.7° ~ 31.5°/s
H & V Flip:Support
Image Freezing:Support
Number of Preset:255
Preset Accuracy:0.1°

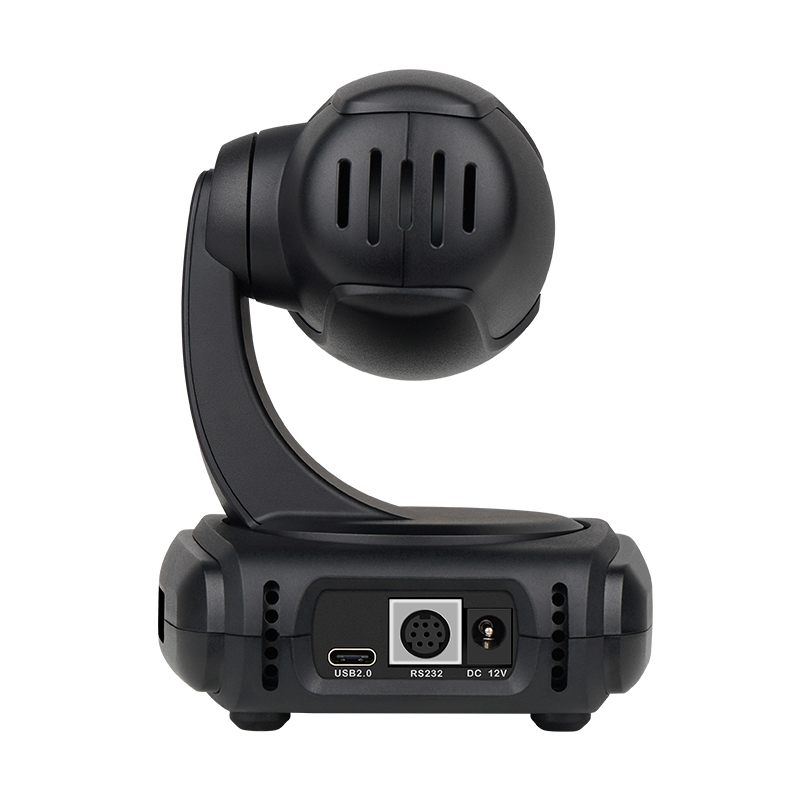

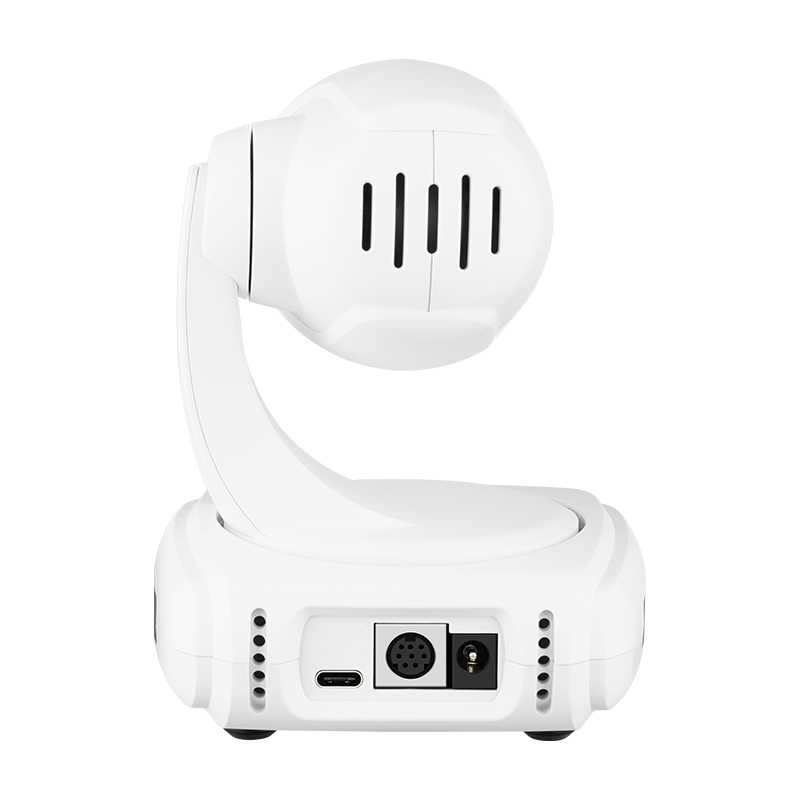

Input/output Interface
USB Interface:1xUSB 2.0, Type-C
Audio Input:Built-in dual Mics
Communication Interface:1xRS232 In
Power Jack:JEITA (DC IN 12V) /USB Type-C (DC IN 5V)
USB Features
Operating System:Windows 7, Windows 8, Windows 10,Windows 11, Mac OS X, Linux, Android
Color System / Compression:YUY2 / MJPEG
Video Format:YUY2 (Isochronous mode) Max 640x480P30；MJPEG Max 1920x1080P30
