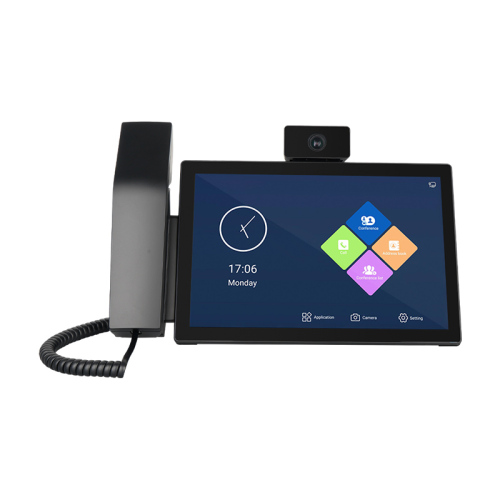

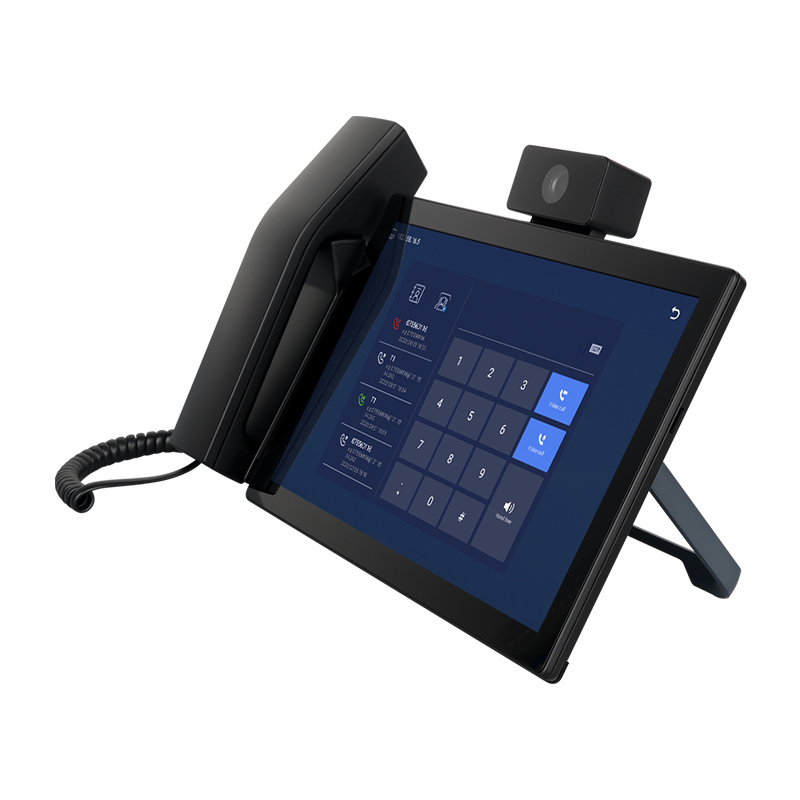

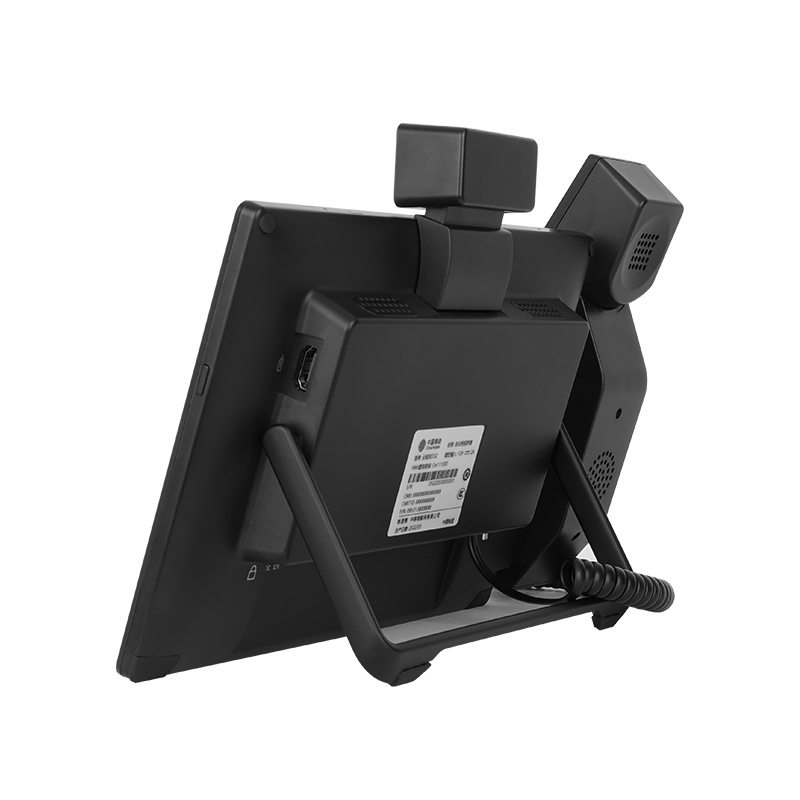

Smart Touch Deskphone with Video Camera-DT100
DT100
See more

Smart Touch Deskphone with Video Camera-DT100

DT100 is a high-end smart phone that integrates audio and video. Based on Android 9.0 system, third-party Android applications can be installed and used, and the interface is convenient to use. Adopt 10.1-inch capacitive screen, LCD capacitive touch screen, 10-point touch. Built-in USB and HDMI interface, provides unified communication, scalable value-added services for enterprise users, and provides rich and flexible desktop-level communication for your product solutions.
1080P HD
SDK interface
Integrated sub stream
Adjustable screen
Android 9.0 system
Large screen design brings better user experience
Adopt 10.1-inch capacitive screen, LCD capacitive touch screen, 10-point touch, bring you better user experience, easy to operate.
Large screen design brings better user experience
Clear audio calls, more efficient communication
Clear audio calls, more efficient communication
Support 1080P high-definition video conference, built-in microphone array, pickup distance is up to 6 meters, unique 3A audio algorithm, full and clear sound quality for smoother communication.
Specifications
System Units
  • Packing list: Desktop Terminalx1; Power adapterx1;1080P USB camera x 1 ; HDMI cable*2; User manual(Quick start)x1
Standards & Protocols
  • Multimedia Framework Protocol:ITU-T H.323, IETF SIP
  • Video codec:Encoder
  • Audio codec:Supports MP3, AAC, WMA, RM, FLAC, Ogg, Dolby Audio optional, DTS optional and programmable with 7.1/5.1 down-mixing
  • Dual Stream Protocol:ITU-T H.239, BFCP
  • WIFI standard:IEEE802.11a/b/g/n/ac,WPA,WPA2
  • BT:BT 5.0
Audio characteristics
  • Audio characteristics:• Automatic echo cancellation (AEC) • Automatic gain control (AGC) • Automatic noise suppression (ANS) • Supports lip sync
General Specifications
  • Size:295*195*63mm
  • Speaker:1* 3W
  • Built-in Microphone: 2*mic pick-up distance 6M
  • Environmental requirements :Temperature
  • Certification:CCC RoHS
Hardware platform
  • Operating system:Android 9.0
  • CPU:4-core A73+2-core A53(optional 4-core A55)
  • NPU:5 TOPS computing power
  • Memory:2G RAM+8GB ROM
Video characteristics
  • Touch screen:10.1 inch IPS touch screen, support 10;-point touch ; Resolution
  • 1080P USB Camera:Sensor
Interface
  • USB Interface:2 x USB2.0 Type-C(host)
  • HDMI Input:1*HDMI IN
  • HDMI Output:1*HDMI OUT
  • Network Interface:2 x RJ45
  • Handle Interface:1*RJ9
  • Telephone Interface:1*RJ11
  • Power Jack:1*DC12V
Package Contents
