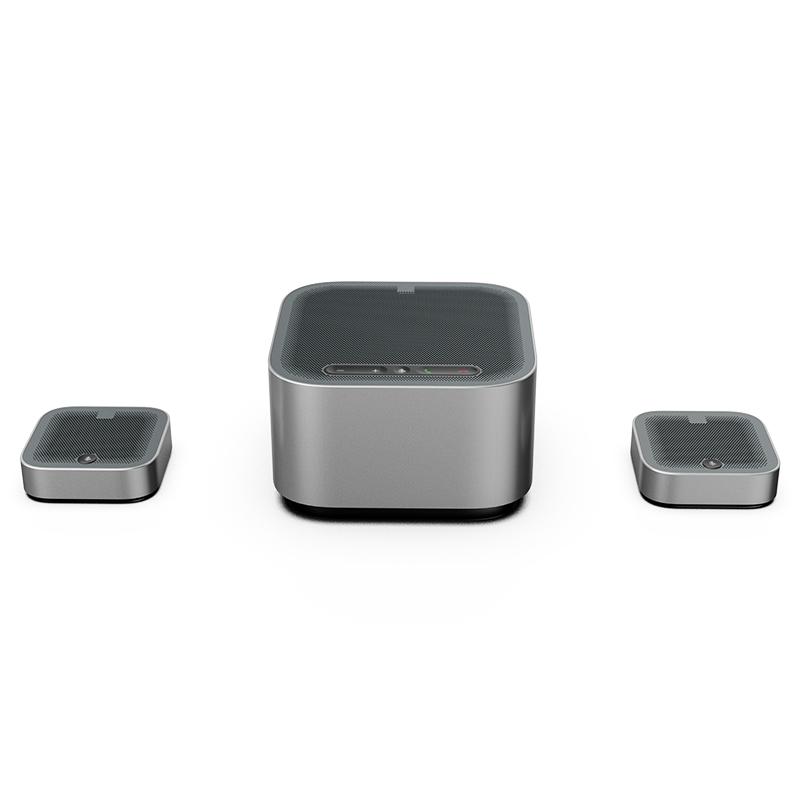

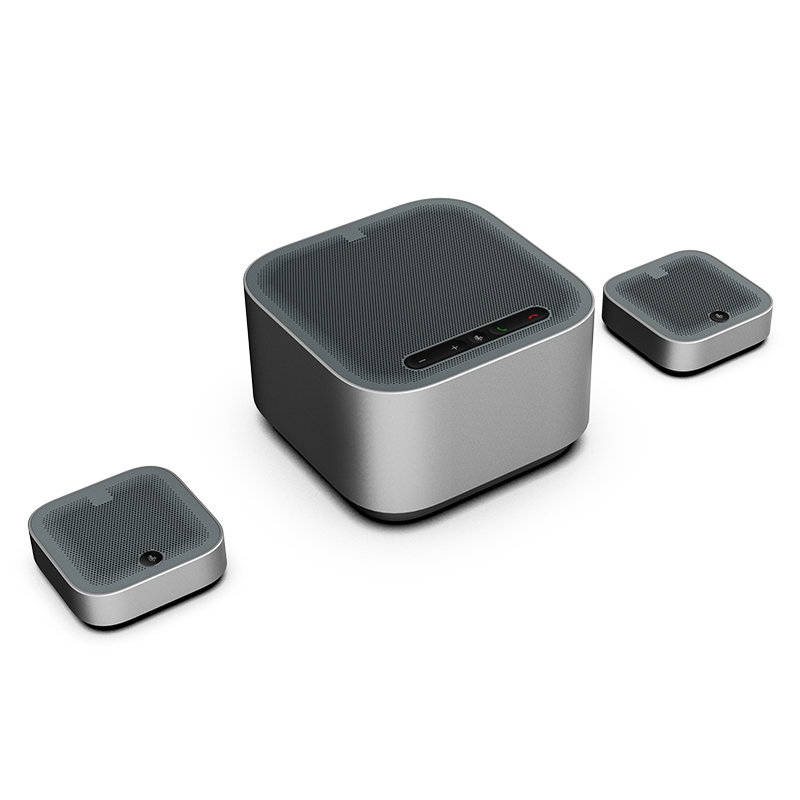

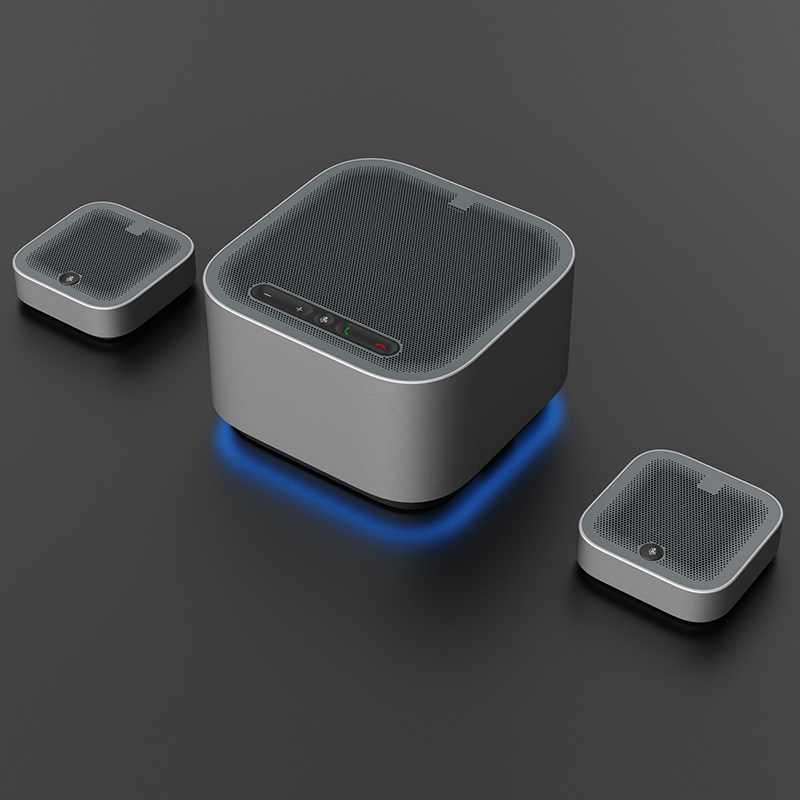

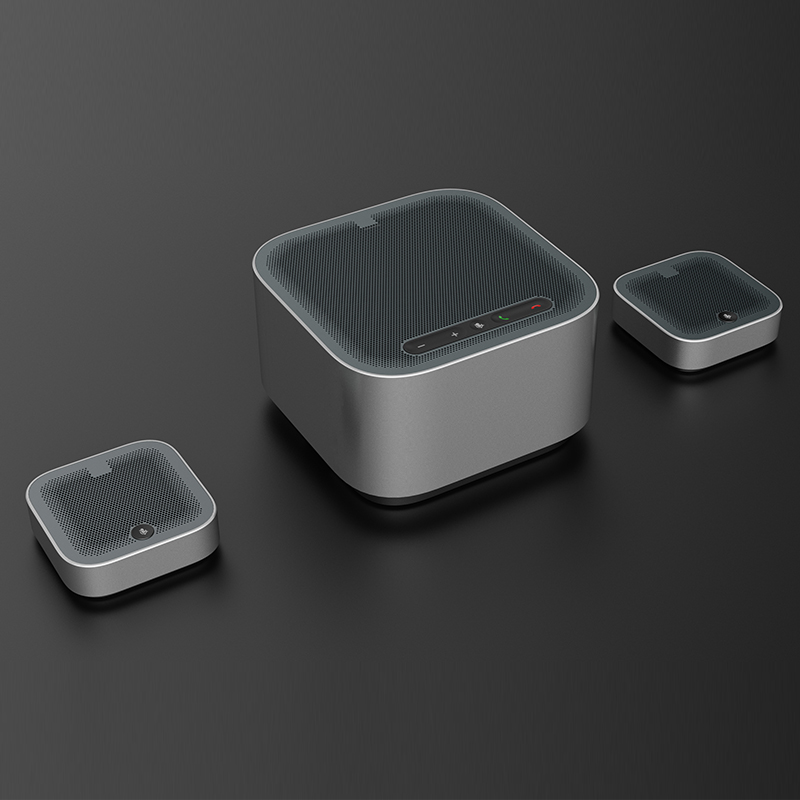

A10 USB Cascade Speaker Microphone kit
See more

A10 USB Cascade Speaker Microphone kit

This is an USB smart conference speakerphone with embedded architecture design. It adopts the combination mode of main microphone + extension microphone, 10 meters ultra-long distance and 360° omnidirectional pickup, built-in high-fidelity sound cavity and AI intelligence audio algorithms to escort your high-quality meetings.
360° omnidirectional pickup
10m radius pickup
Full-duplex audio technology
Four built-in digital microphones
3A algorithm
High-fidelity sound effect
It adopts high and low-frequency speaker design, tuned by top sound engineers, making the playing music rich in bass, clear in treble, and clear and natural in playing voice.
High-fidelity sound effect
Multi-platform compatibility, plug-and-play
Multi-platform compatibility, plug-and-play
Compatible with various platforms and mainstream conference software, plug-and-play, free of configuration and debugging, easy to use.
  • Microphone type : Omnidirectional microphone
  • Microphone array : Built-in 6 omnidirectional microphones (main mic 4+2* extension Mic 1)
  • Pickup distance : 10m pickup distance (dual-extended mic mode)
  • Frequency response : 50Hz~16kHz
  • SNR : 65dB
  • Sensitivity : -35dBFS 94dB SPL @1KHz
  • Audio features : 32K sampling rate, HD broadband audio, full-duplex
  • USB protocol : Support UAC2.0
  • AEC : Using AI algorithm to eliminate echo
  • ANS : AI noise reduction, eliminate all kinds of stationary and non-stationary interference noise, maximum noise suppression
  • AGC : Intelligent gain adjustment within 10 meters, clear pickup
  • Reverberation suppression : Using AI algorithm to reduce reverberation
  • Type C interface : 1 × Type C interface, used to connect the audio input and output of PC and other equipment;2 × Type C interface for connecting to the extension mic
  • Power supply : DC12V/3A, external power supply to power the microphone device
  • Buttons : Touch button (mute button with light indicator)
  • Speaker type : Full frequency speaker
  • Power : 15W
  • Frequency Range : 50Hz ~ 20kHz
  • Volume : 89dBA @1m
  • THD : <3%
Other specifications
  • Size(LxWxH): 150m * 150mm * 89mm (Main Mic) ;80m * 80mm * 25mm (Extension Mic)
  • Weight : Main Mic
  • Environmental conditions : Temperature
  • Certification : CCC,CE,RoHS
Packing List
  • 1 x Omnidirectional Mic Main Mic:
  • 2 x Extension Microphones:
  • 1 x USB main mic cable:
  • 2 x USB extension mic cable:
  • 1 x Power Adapter:
  • 1 x Quick Start:
  • 1 x Quality certificate/Warranty Card:
Package Contents
