Smart Touch Screen Terminal-CM800
See more

Smart Touch Screen Terminal-CM800

CM800 intelligent control terminal integrates microphone, speaker, touch screen Android operating system, supports POE power supply, a single device can meet the needs of audio collection, playback, and conference control, which greatly simplifies deployment. Using a 10.1-inch capacitive screen and running the Zoom Rooms control software, it provides users with the ultimate operating experience, allowing you to easily create/join a meeting and greatly improve meeting efficiency.
Integrated design
Smart mixing
POE power supply
Multiple audio interface
Built-in speaker
Built-in IP phone client (optional)

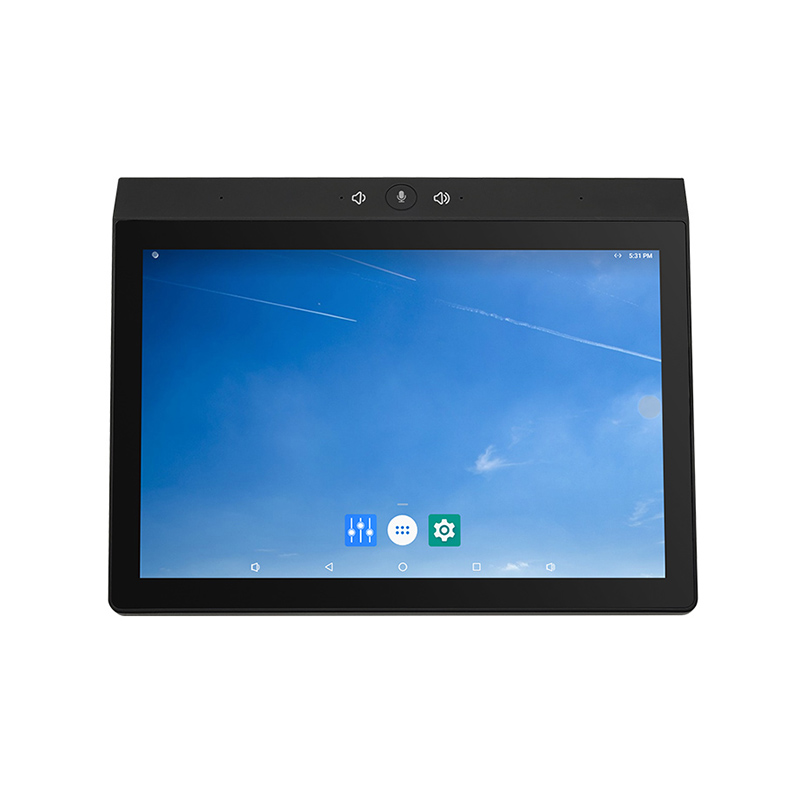

Large-screen touch interface, start your meeting journey
10.1-inch capacitive screen, Android 8.1 system, can install third-party conference control applications such as Zoom controller to control conference or video conference terminals.
Large-screen touch interface, start your meeting journey
Smart mixing
Smart mixing
With the built-in intelligent mixing function, multiple audio inputs and outputs from various interfaces and IP phone applications can be connected to a conference, and automatically mix the audio to meet the needs of joining the conference by phone.
  • Standard:Touch Screen Terminalx1;Power adapterx1;USB cable(1.5m)x1;HDMI cable(1.5m)x1; User manual(Quick start)x1
  • Optional:USB (5m or 10m) x 1 (replaces the 1.5m USB cable in the standard kit); Extended microphone X 2;Extended microphone cable (5m) x 2
Video characteristics
  • Touch screen: 10.1 inch IPS touch screen, support 10-point touch
  • Resolution: 1280x800
  • Viewing angle: 170 degrees
  • Resolution: Input
General characteristics
  • Size :244mm x 176mm x 74mm
  • Electrical characteristics: Working voltage
  • Environmental requirements: Temperature
  • Certification:CCC CE RoHS WEEE REACH
Hardware platform
  • Operating system: Android 8.1
  • CPU: 4*Cortex-A35,1.2GHz
  • GPU: ARM G31-2EE, support OpenGL ES1.1/2.0/3.2
  • Memory: 2G RAM+8GB ROM
  • Video codec: Encoder
  • WIFI standard :IEEE802.11a/b/g/n/ac,WPA,WPA2
  • Bluetooth: BT 5.0
Audio characteristics
  • Audio input interface:1 x built-in microphone array input ; 1 x 3.5mm audio input and output ; 1 x Bluetooth audio input and output ;1 x Type-C audio input and output ; 2 x extended microphone input
  • Audio output interface: 2 x 5W built-in speakers ;1 x 3.5mm line input and output ;1 x 3.5mm line output ; 1 x Bluetooth audio input and output; 1 x Type-C audio input and output
  • Video input interface:1 x HDMI
  • USB Interface:1 x USB2.0 Type-C
  • Network interface:1 x RJ45
Package Contents
