RC03 is equipped with 4K Sensor and lens to achieve high-definition e-PTZ. Built-in advanced image recognization and tracking algorithm to achieve a smooth and natural tracking effect without any extra positioning camera or tracking host. Different lens are used to achieve teacher tracking or student tracking.
4K Ultra HD
AI tracking
2D & 3D noise reduction
Interleaving mode
POC/POE
SDI/IP/USB
Use different lens angles for teachers or students tracking to better achieve smooth recording
42° lens with auto focus is used on teacher tracking camera, which can better capture the teacher's handwriting on the blackboard.low distortion lens is used on student tracking camera, horizontal field of view is up to 95° to capture the complete classroom scene. Also support EPTZ, which can be seen more clearly when zoom in.
Support interleaving mode, output panorama and close-up signals simultaneously
Single camera and single SDI interface can output panorama and close-up signals simultaneously.
Specifications
Camera
Sensor:1/2.8'', CMOS, Effective Pixel
Scanning Mode:Progressive
Lens Mount:M12
Lens1(teacher):Focus
Lens2(student):Focus
AF:Support
Minimal Illumination:0.5 Lux @ (F1.8, AGC ON)
Shutter:1/30s ~ 1/10000s
White Balance:Auto, Indoor, Outdoor, One Push, Manual, Specified color temperature
Digital Noise Reduction:2D&3D Digital Noise Reduction
Backlight Compensation:Support
EPTZ:Support
Digital zoom :8x
PoE:Support
Lens 1 / 2 :Teacher mode / Student mode

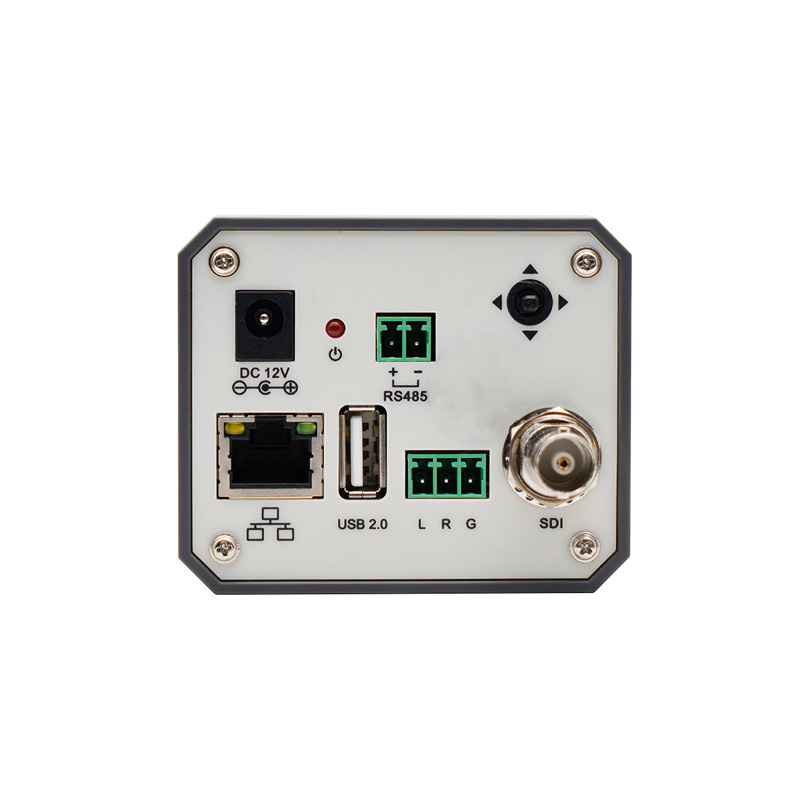

Input/Output Interface
HD Output:1x 3G-SDI
USB Interface:1xUSB 2.0, type A
Network Interface:1xRJ45
Audio Interface:1x line in
Control Interface:1xRS485
Power Jack:Type DC005(DC 12V)
Network Features
Video Compression:H.265 / H.264 / MJPEG
Video Stream:The first, second, third, fourth stream
The First Stream:1920x1080, 1280x720, 1024x576, 960x540, 640x480,640x360,352x288
The Second Stream :3840x2160, 1920x1080,1280x720,1024x576,720x576, 720x408,640x360,480x272,320x240,320x180
The Third Stream:1920x1080, 1280x720,1024x576,960x540,720x576,720x408,640x480,640x360,480x272,320x240,320x180
The Fourth Stream:1920x1080, 1280x720,1024x576,960x540,720x576,720x408,640x480,640x360,480x272,320x240,320x180
Video Bit Rate:32Kbps ~ 16384Kbps
Bit Rate Type:Variable Rate, Fixed Rate
Frame Rate: 1fps ~ 30fps
Audio Compression:AAC,G711A
Audio Bit Rate :96Kbps、128Kbps、256Kbps
Support protocols: TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.
